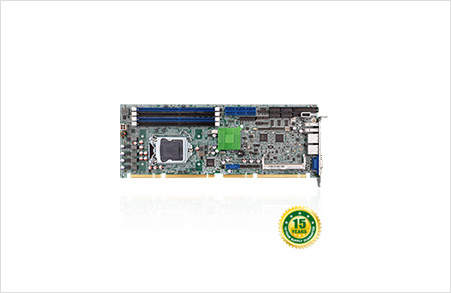

Spec Item

Description

Dimensions

Dimensions

338 mm x 126 mm

Environment

Humidity

5% ~ 95%, non-condensing

Operating Temperature

-20°C ~ 60°C

I/O Interface

Digital I/O

8-bit digital I/O

Ethernet

LAN1: Intel® I219LM Clarkville-V with Intel® AMT 11.0 supported

LAN2: Intel® I210 PCIe controller

Expansion

16-lane PCIe link from CPU via golden finger: 16-lane PCIe link from CPU via golden finger: Supports one PCIe x16, or two PCIe x8, or one PCIe x8 + two PCIe x4 on the backplane (configured via BIOS) 4-lane PCIe link from PCH via golden finger: Supports four PCIe x1 slots or one PCIe x4 slot on the backplane (configured via BIOS switch) One PCIe Mini Four PCI signal via golden finger One PCIe Mini

I/O Interface

I/O Interface

1 x LPT

6 x SATA 6Gb/s

1 x KB/MS((1 x 6Pin Wafer))

2 x Internal RS-232/422/485

7 x Internal USB 2.0((1 type A 180°, 6 by pin header))

2 x Internal USB 3.0((19 Pin BOX HEADER))

2 x Internal RS-232

Option

iRIS

1 x iRIS-2400 slot (optional)

Power

Power consumption

5V@3.12A, 12V@6.85A, 3.3V@1.13A, 5VSB@0.15A (Intel® Core™ i7-6700K 4.0GHz CPU with 64GB (16GB x 4) 2133 MHz DDR4 memory)

System

Chipset

Intel® Q170

CPU

LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor

Memory Max.

Four 288-pin 1867/2133MHz Dual-Channel DDR4 SDRAM unbuffered DIMM supported up to 64GB

Weight

Weight

1000g / NW: 420g
