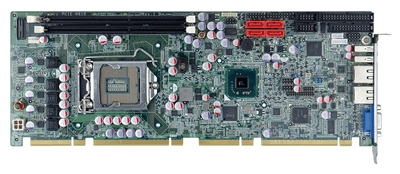

Spec Item

Description

CPU Cooler

CPU Cooler

CF-1156A-RS-R11

CF-1156C-RS

CF-1156D-RS

CF-1156E-R11

Environment

Humidity

5% ~ 95%, non-condensing

Operating Temperature

-10°C ~ 60°C

Expansion Slots

Expansion Slots

N/A

I/O Interface

Audio

Supports by IEI AC-KIT- 892HD-R10 audio kit

Digital I/O

8-bit Digital I/O

Display

1 x VGA

1 x DVI-D (via header to IO-KIT- 001-R20 DVI-D/USB module) (optional)

Ethernet

LAN1: Realtek RTL8111E PCIe GbE controller with ASF 2.0 support

LAN2: Realtek RTL8111E PCIe GbE controller

I/O Interface

I/O Interface

1 x KB/MS

4 x Internal USB 2.0

1 x Internal RS-422/485

2 x Internal RS-232

1 x I²C

1 x VGA

1 x LPT

1 x SMBus

2 x USB 2.0

Power

Power consumption

5V@4.41A, 12V@0.21A, Vcore_12V@7.72A, 3.3V@1.71A, 5VSB@0.16A (3.4GHz Intel® Core™ i7- 2600K with two 2GB 1333MHz DDR3 memory)

Storage

Storage

4 x SATA 3Gb/s

System

Chipset

Intel® H61

CPU

Intel® Core™ i7/i5/i3, PentiumR, Celeron® processor

CPU Socket

LGA1155

Memory Max.

Two 240-pin 1066/1333MHz dual-channel DDR3/DDR3L (1.35V) SDRAM DIMMs (system max. 16GB)

Watchdog Timer

Watchdog Timer

Software programmable supports 1~255 sec. system reset
