Part Number

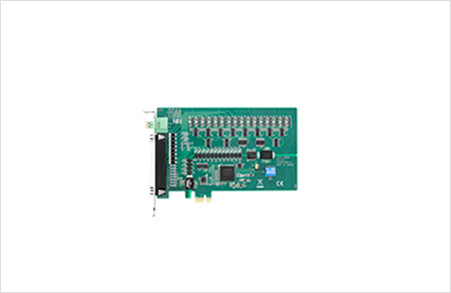

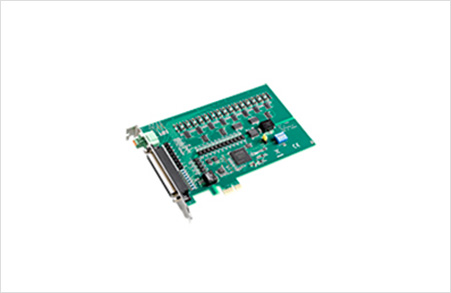

PCIE-1750U-AE

General

Power Consumption

Typical: 3.3V @ 255mA, 12V @ 30mA; Max.: 3.3V @ 280mA, 12V @ 60mA

Dimensions

168 x 100 mm (6.6" x 3.9")

OS Support

32-bit/64-bit Windows 7/8/10

Bus

PCIe

I/O Connectors

37-pin D-Sub female

Operating Temperature

0 ~ 60° C (32 ~ 140° F)

Programming Language

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

Isolated Digital I/O

Input Channels

16

Input Range

0~30 VDC

Output Channels

16

Output Ranges

5~40VDC, Sink or Source Type(Software Selectable)
