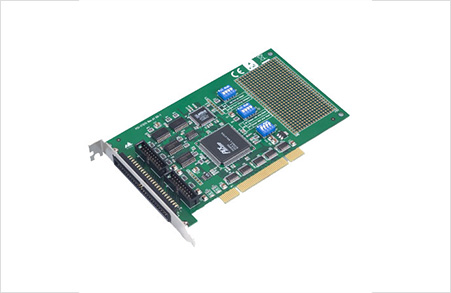

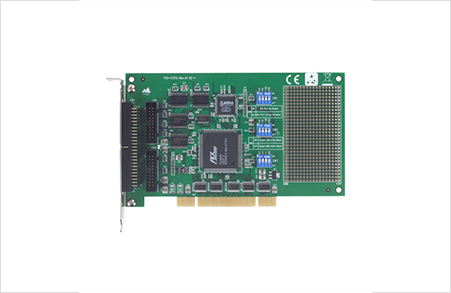

PCI-1737U
ISA兼容PCL-724
24通道TTL数字输入/输出
模仿8255PPI“0“模式
中断处理
Opto-2250芯兼容型连接器
输出状态回读
通用PCI卡
规格

Part Number

PCI-1737U-BE

General

Power Consumption

Max.: 5 V @ 300 mA

OS Support

32-bit/64-bit Windows 7/8/10, and Linux

Dimensions

175 x 100 mm (6.9" x 3.9” )

Bus

PCI

I/O Connectors

50-pin insulation displacement connectors

Operating Temperature

0 ~ 60°C (32 ~ 140° F)

Programming Language

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

TTL DI/O

Input Channels

24 (shared)

Output Channels

24 (shared)
