Part Number

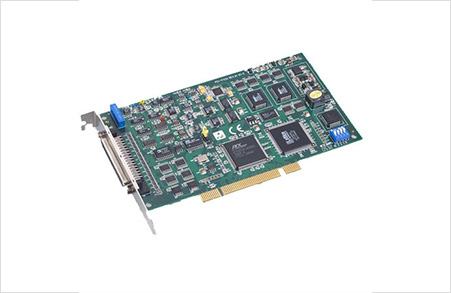

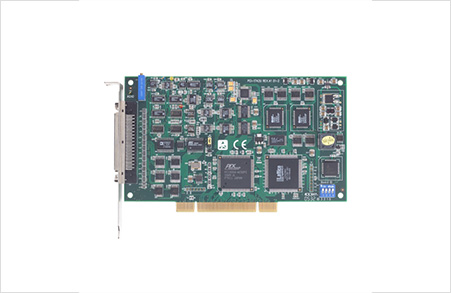

PCI-1742U-AE

General

Power Consumption

Typical: 5 V @ 850 mA; Max.: 5 V @ 1 A

OS Support

32-bit/64-bit Windows 7/8/10, and Linux

Dimensions

175 x 100 mm (6.9" x 3.9")

Bus

PCI

I/O Connectors

1 x 68-pin SCSI female connector

Operating Temperature

0 ~ 60°C (32 ~ 140° F)

Programming Language

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

Analog Input

Sampling Rates(S/s)

1 M

Bipolar Inputs (V)

±10, 5, 2.5, 1.25, 0.625

Channels

16

Type

Scan

Unipolar Input (V)

0~10, 0~5, 0~0.25, 0~1.25

Resolution(Bits)

16

Input Impedance

100 MO

Overvoltage Protection

±20 V

Analog Output

Resolution(Bits)

16

Channels

2

Output Ranges

0 ~ +10 V, 0 ~ +5 V -5V ~ +5 V -10 V ~ +10 V

Update Rate(S/s)

2 M

Timer/Counter

Resolution

16 bits

Channels

1

Max. Input Frequency

10 MHz

TTL DI/O

Input Channels

16

Output Channels

16
