Part Number

ACP-4340BP-50ZE

ACP-4340BP-70ZE

ACP-4340MB-50RE

ACP-4340MB-50ZE

ACP-4340MB-70ZE

Form Factor

Form Factor

4U Rackmount

4U Rackmount

4U Rackmount

4U Rackmount

4U Rackmount

Cooling

Air Filter

Yes

Yes

Yes

Yes

Yes

Fan

1 (12 cm /74 CFM) + 1 (8 cm/56 CFM) for SAS/SATA storage unit

1 (12 cm /74 CFM) + 1 (8 cm/56 CFM) for SAS/SATA storage unit

1 (12 cm /74 CFM) + 1 (8 cm/56 CFM) for SAS/SATA storage unit

1 (12 cm /74 CFM) + 1 (8 cm/56 CFM) for SAS/SATA storage unit

1 (12 cm /74 CFM) + 1 (8 cm/56 CFM) for SAS/SATA storage unit

Front I/O Interface

USB3.0

2

2

2

2

2

Environment

Operating-Temperature

0 ~ 45

0 ~ 45

0 ~ 45

0 ~ 45

0 ~ 45

Operating Shock

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

Non-Operational Temperature

-20 ~ 60° C (-4 ~ 140° F)

-20 ~ 60° C (-4 ~ 140° F)

-20 ~ 60° C (-4 ~ 140° F)

-20 ~ 60° C (-4 ~ 140° F)

-20 ~ 60° C (-4 ~ 140° F)

Operating Humidity

10 ~ 85% @ 40° C, non-condensing

10 ~ 85% @ 40° C, non-condensing

10 ~ 85% @ 40° C, non-condensing

10 ~ 85% @ 40° C, non-condensing

10 ~ 85% @ 40° C, non-condensing

Non-Operating Humidity

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

Operating Vibration (5 ~ 500 Hz)

1 Grms

1 Grms

1 Grms

1 Grms

1 Grms

Non-Operating Vibration (5 ~ 500 Hz)

2 G

2 G

2 G

2 G

2 G

Physical Characteristics

Weight

12.5 kg (27.5 lb )

12.5 kg (27.5 lb )

12.5 kg (27.5 lb )

12.5 kg (27.5 lb )

12.5 kg (27.5 lb )

Dimensions (W x H x D)

482 x 177 x 479 mm (19" x 7" x 18.9")

482 x 177 x 479 mm (19" x 7" x 18.9")

482 x 177 x 479 mm (19" x 7" x 18.9")

482 x 177 x 479 mm (19" x 7" x 18.9")

482 x 177 x 479 mm (19" x 7" x 18.9")

Disk Drive Bay

Slim ODD

1

1

1

1

1

2.5" Internal

1

1

1

1

1

Hot-swap Drive Bay

4 (compatible with 3.5" or 2.5" devices)

4 (compatible with 3.5" or 2.5" devices)

4 (compatible with 3.5" or 2.5" devices)

4 (compatible with 3.5" or 2.5" devices)

4 (compatible with 3.5" or 2.5" devices)

Miscellaneous

LED Indicators

Power, HDD, temperature, fan, LAN1, and LAN2

Power, HDD, temperature, fan, LAN1, and LAN2

Power, HDD, temperature, fan, LAN1, and LAN2

Power, HDD, temperature, fan, LAN1, and LAN2

Power, HDD, temperature, fan, LAN1, and LAN2

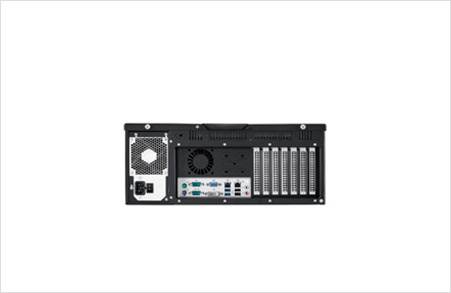

Rear Panel

One 9-pin D-Sub opening

One 9-pin D-Sub opening

One 9-pin D-Sub opening

One 9-pin D-Sub opening

One 9-pin D-Sub opening

Intelligent System Module

Remote Monitoring

CPU/System fan speed , CPU/System temperature , motherboard voltage

CPU/System fan speed , CPU/System temperature , motherboard voltage

CPU/System fan speed , CPU/System temperature , motherboard voltage

CPU/System fan speed , CPU/System temperature , motherboard voltage

CPU/System fan speed , CPU/System temperature , motherboard voltage

Power Supply

Power Supply

500W (Single)

700W (Single)

500W (Single)

500W (Single)

700W (Single)
