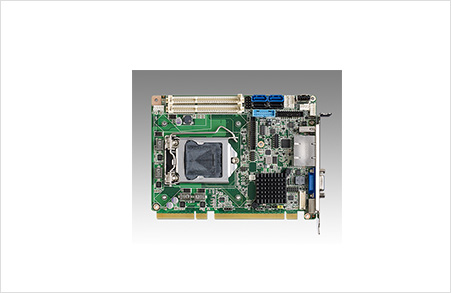

Part Number

PCE-3028G2-00A1E

Form Factor

Form Factor

PICMG 1.3 Half-Size SBC

Processor System

CPU

Intel 4th Core i3/i5/i7 (LGA 1150)

CPU TDP

Up to 65 W

Frequency

Up to 3.4 GHz

Core Number

4

L3 Cache

8 MB

BIOS

AMI 128 Mbit SPI Flash

Chipset

Intel H81

Integrated Graphics

Yes

Memory

Technology

DDR3 1066/1333/1600 MHz

Capacity

Up to 16 GB

Socket

2 x 204-pin DDR3 SO-DIMM

Display

Controller

Intel HD graphics Integrated

Multiple Display

Dual

Display Interface

VGA: Up to 1920 x 1200 DVI-D: Up to 1920 x 1200

Expansion Interface

PCI Express x 16

1

PCI Express x 4

1

Ethernet

Controller

LAN1: Intel I217V LAN2: Intel I211

Speed

10/100/1000 Mbps

Connector

2 x RJ45

WatchDog Timer

Output

System Reset

I/O

COM Port

2 x RS232

GPIO

8-bit

LPT

1

PS/2 Keyboard/Mouse

1

SATA

2 x SATA III 2 x SATA II

USB2.0

8

USB3.0

2

Rear I/O Interface

USB2.0

1

PS/2

2 (1 x Keyboard, 1 x Mouse)

Ethernet

2

VGA

1

Power Requirement

Voltage

+12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V

Current

7.26A/ 1.06A/0.42A/0/0/0

Environment

Operating-Temperature

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational Temperature

-40~ 85° C and 60° C @ 95% RH Non-Condensing

Non-Operating Vibration

2 Grms

Physical Characteristics

Dimensions (LxW)

167.64 mm x 126.39 mm (6.6'' x 4.98'')

Weight

0.33 kg

Certification

EMC

CE, FCC
