Part Number

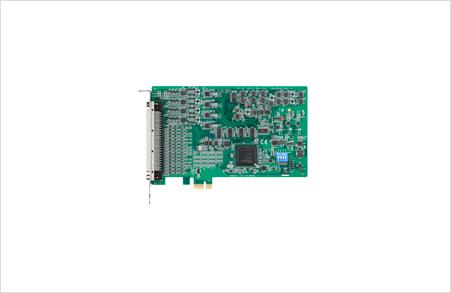

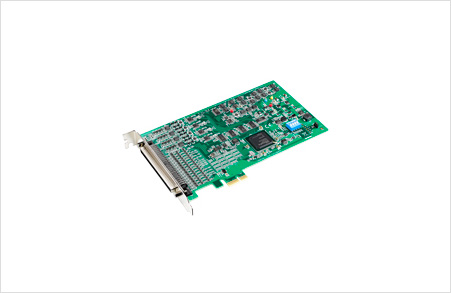

PCIE-1813-AE

General

OS Support

32-bit/64-bit Windows 7/8/10

Power Consumption

Typical: 3.3 V @ 488 mA; Max.: 3.3 V @ 2.25 A

Dimensions

167 x 100 mm

Bus

PCIe

I/O Connectors

100-pin SCSI female connector

Operating Temperature

0 ~ 60°C (32 ~ 140°F)

Programming Language

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

Triggering

16 bits Analog x 2 / Digital x 2

Analog Input

Sampling Rates(S/s)

38.4 K

Bipolar Inputs (V)

±10V, ±5, ±2.5, ±1.25, ±0.625, ±0.3125

Channels

4

Type

Simultaneous Sample

Bridge Input (V/V)

±31.25 m, ±62.5 m, ±125 m, ±250 m, ±500 m, ±1

Resolution(Bits)

26

Input Impedance

1 GΩ

Trigger Mode

Start trigger, Delay to Start trigger, Stop trigger, Delay to Stop trigger

Overvoltage Protection

30 Vp-p

Analog Output

Resolution(Bits)

16

Channels

2

Output Ranges

0 ~ +10 V, 0 ~ +5 V -5V ~ +5 V -10 V ~ +10 V

Update Rate(S/s)

3 M

Timer/Counter

Resolution

32 bits

Channels

4

Max. Input Frequency

10 MHz

TTL DI/O

Input Channels

32(Shared)

Output Channels

32(Shared)
