Part Number

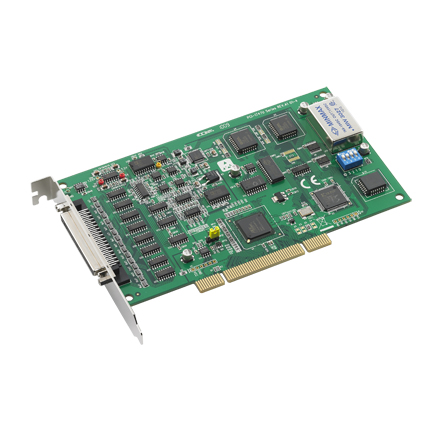

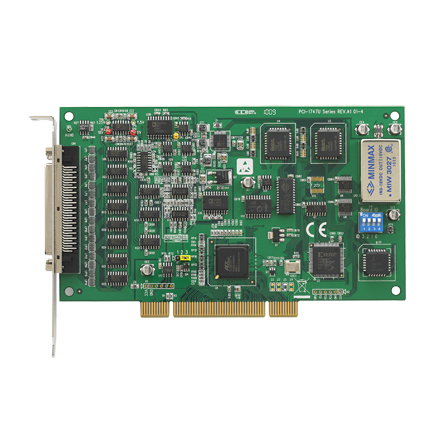

PCI-1747U-AE

General

Power Consumption

Typical: 5V @ 850 mA ; Max: 5V @ 1 A

OS Support

32-bit/64-bit Windows 7/8/10, and Linux

Dimensions

175 x 100 mm (6.9" x 3.9")

Bus

PCI

I/O Connectors

1 x 68-pin SCSI female connector

Operating Temperature

0 ~ 60°C (32 ~ 140° F)

Programming Language

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

Analog Input

Sampling Rates(S/s)

250 K

Bipolar Inputs (V)

±10, 5, 2.5, 1.25, 0.625

Channels

64

Type

Scan

Unipolar Input (V)

0 ~ 10, 0 ~ 5, 0 ~ 2.5, 0 ~ 1.25

Resolution(Bits)

16

Input Impedance

100 MO
