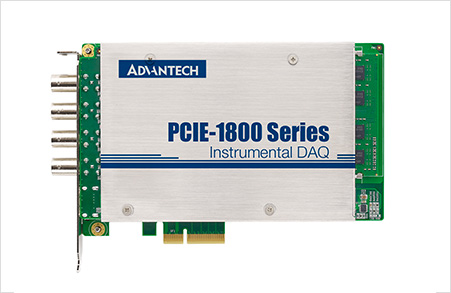

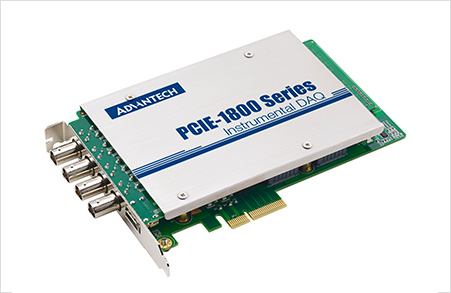

Part Number

PCIE-1840-AE

PCIE-1840L-AE

Power Requirement

Power Consumption

Typical: +3.3 V @ 1.75 A, +12 V @ 1.1 A; Maximum: +3.3 V @ 2A, +12 V @ 1.4 A

Typical: +3.3 V @ 1.75 A, +12 V @ 1.1 A; Maximum: +3.3 V @ 2A, +12 V @ 1.4 A

General

OS Support

32-bit/64-bit Windows 7/8/10

32-bit/64-bit Windows 7/8/10

Dimensions

168 x 99 mm ( 6.6 x 3.9in.)

168 x 99 mm ( 6.6 x 3.9in.)

Bus

PCIe

PCIe

I/O Connectors

4 x BNC connector (for AI); 1 x HDMI connector (for Ext. clock and trigger)

4 x BNC connector (for AI); 1 x HDMI connector (for Ext. clock and trigger)

Operating Temperature

0 ~ 50°C (32 ~ 122°F)

0 ~ 50°C (32 ~ 122°F)

Programming Language

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

Analog Input

Sampling Rates(S/s)

125 M

80 M

Bipolar Inputs (V)

±10, 5, 2, 1, 0.2,0.1

±10, 5, 2, 1, 0.2,0.1

Channels

4

4

Type

Simultaneous Sample

Simultaneous Sample

Resolution(Bits)

16

16

Input Impedance

50 O / 1M O; For 1 MO: AC Coupling /DC Coupling

50 O / 1M O; For 1 MO: AC Coupling /DC Coupling

Trigger Mode

Start trigger, Delay to Start trigger, Stop trigger, Delay to Stop trigger

Start trigger, Delay to Start trigger, Stop trigger, Delay to Stop trigger

Overvoltage Protection

30 Vp-p

30 Vp-p
