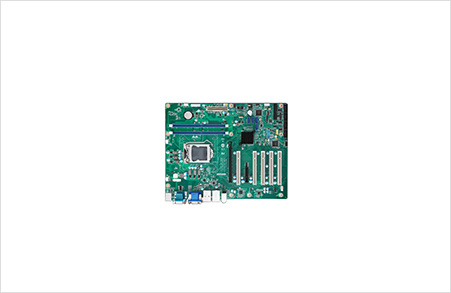

Part Number

AIMB-705G2-00A1E

AIMB-705VG-00A1E

Form Factor

Form Factor

ATX

ATX

Processor System

CPU

Intel 6th Core i3/i5/i7 (LGA1151)

Intel 6th Core i3/i5/i7 (LGA1151)

Frequency

Up to 3.7 GHz

Up to 3.7 GHz

L3 Cache

8 MB/6 MB/4 MB/3 MB/2 MB

8 MB/6 MB/4 MB/3 MB/2 MB

BIOS

AMI SPI 128 Mbit

AMI SPI 128 Mbit

Chipset

Intel H110

Intel H110

Integrated Graphics

Yes

Yes

Socket

LGA1151

LGA1151

Memory

Technology

Dual Channel DDR4 1866/2133 MHz

Dual Channel DDR4 1866/2133 MHz

Capacity

Up to 32 GB (16 GB Per DIMM)

Up to 32 GB (16 GB Per DIMM)

Socket

2 x 288-pin DIMM

2 x 288-pin DIMM

Display

Controller

Intel HQ Graphics Integrated

Intel HQ Graphics Integrated

Graphic Memory

Share system memory up to 1 GB with 2 GB and above memory installed

Share system memory up to 1 GB with 2 GB and above memory installed

Multiple Display

Dual

-

Display Interface

VGA: Up to 1920 x 1200, DVI-D: Up to 1920 x 1200

VGA: Up to 1920 x 1200

Expansion Interface

PCI Express x 16

1

1

PCI Express x 4

1

1

PCI

5

5

LPC

1

1

Ethernet

Controller

LAN1: Intel I219-V, LAN2: Intel I211-AT

LAN1: Intel I219-V

Connector

2 x RJ-45

1 x RJ-45

Interface

10/100/1000 Mbps

10/100/1000 Mbps

WatchDog Timer

Output

System Reset

System Reset

Interval

Programmable 1~255 sec

Programmable 1~255 sec

I/O

COM Port

4 (3 x RS-232, 1 x RS-232/422/485)

-

GPIO

8-bit

8-bit

LPT

1

1

PS/2 Keyboard/Mouse

1

1

SATA

4 x SATA III

4 x SATA III

SPDIF

1

1

System Fan

2

2

USB2.0

3

3

USB3.0

2

2

Rear I/O Interface

Display

2

1

USB3.0

2

2

USB2.0

2

2

COM

2 (RS-232)

2 (RS-232)

PS/2

2 (1 x keyboard and 1 x mouse)

2 (1 x keyboard and 1 x mouse)

Audio

2 (Mic-in, Line-out)

2 (Mic-in, Line-out)

DVI

1

-

Ethernet

2

1

VGA

1

1

Physical Characteristics

Dimensions (LxW)

304.8 x 244 mm (12" x 9.6")

304.8 x 244 mm (12" x 9.6")

Certification

EMC

CE, FCC

CE, FCC
