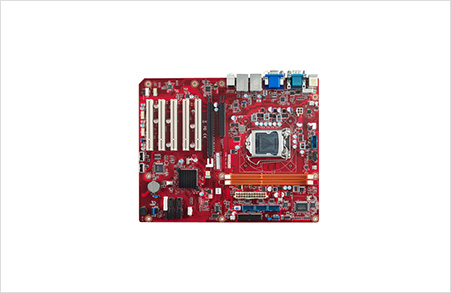

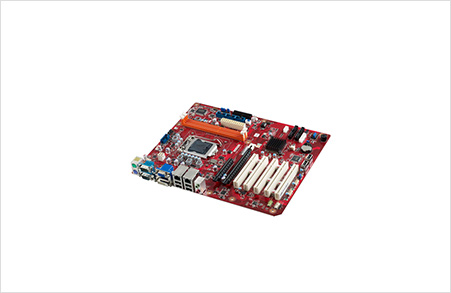

Part Number

AIMB-701G2-00A1E

AIMB-701VG-00A1E

Form Factor

Form Factor

ATX

ATX

Processor System

CPU

Intel 2nd, 3rd Core i3/i5/i7 (LGA 1155)

Intel 2nd, 3rd Core i3/i5/i7 (LGA 1155)

Frequency

Up to 3.4 GHz

Up to 3.4 GHz

L3 Cache

8 MB/6 MB/3 MB

8 MB/6 MB/3 MB

BIOS

AMI EFI 64 Mbit

AMI EFI 64 Mbit

Chipset

Intel H61

Intel H61

Integrated Graphics

Yes

Yes

Socket

LGA1155

LGA1155

Memory

Technology

Dual Channel DDR3 1066/1333/1600 MHz (1600 only supported by Core i7/5/3 3xxx series processors)

Dual Channel DDR3 1066/1333/1600 MHz (1600 only supported by Core i7/5/3 3xxx series processors)

Capacity

Up to 16 GB (8 GB per DIMM)

Up to 16 GB (8 GB per DIMM)

Socket

2 x 240-pin DIMM

2 x 240-pin DIMM

Display

Controller

Intel HQ Graphics Integrated

Intel HQ Graphics Integrated

Graphic Memory

Share system memory up to 1 GB with 2 GB and above memory installed

Share system memory up to 1 GB with 2 GB and above memory installed

Multiple Display

Dual

Dual

Display Interface

VGA: Up to 2048 x 1536 , DVI-D: Up to 1920 x 1200

VGA: Up to 2048 x 1536

Expansion Interface

PCI Express x 16

1

1

PCI Express x 1

1

-

PCI

5

5

LPC

1

1

PCI Express x 4

-

1

Ethernet

Controller

LAN1: Intel 82579V , LAN2: Intel 82583V

LAN1: Intel 82579V

Connector

2 x RJ-45

1 x RJ-45

Interface

10/100/1000 Mbps

10/100/1000 Mbps

WatchDog Timer

Output

System Reset

System Reset

Interval

Programmable 1~255 sec

Programmable 1~255 sec

I/O

COM Port

4 (3 x RS-232, 1 x RS-232/422/485)

-

GPIO

8-bit

8-bit

LPT

1

1

PS/2 Keyboard/Mouse

1

1

SATA

4 x SATA II

4 x SATA II

SPDIF

1

1

System Fan

2

2

USB2.0

6

6

Rear I/O Interface

Display

2

1

USB2.0

4

4

COM

2 (RS-232)

2 (RS-232)

PS/2

2 (1 x keyboard and 1 x mouse)

2 (1 x keyboard and 1 x mouse)

Audio

2 (Mic-in, Line-out)

2 (Mic-in, Line-out)

DVI

1

-

Ethernet

2

1

VGA

1

1

Physical Characteristics

Dimensions (LxW)

304.8 x 244 mm (12" x 9.6")

304.8 x 244 mm (12" x 9.6")

Certification

EMC

CE, FCC

CE, FCC
