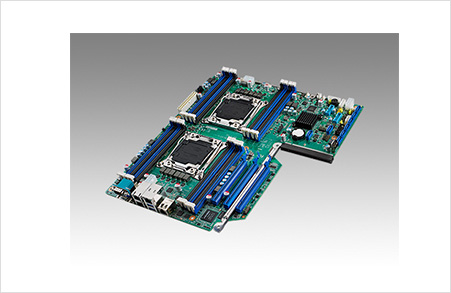

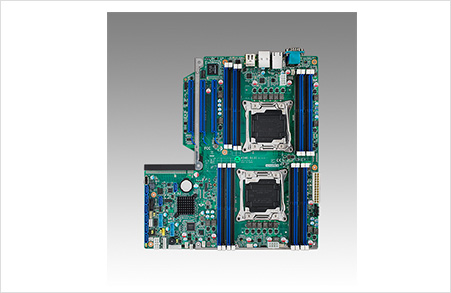

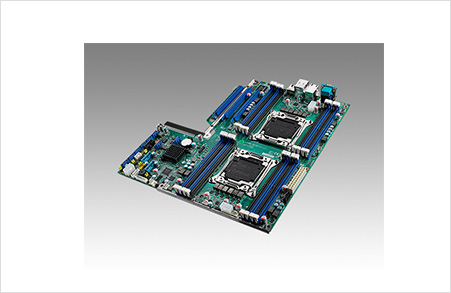

Part Number

ASMB-913-00A1E

ASMB-913I-00A1E

Form Factor

Form Factor

EATX

EATX

Processor System

CPU

Intel Xeon E5-2600 v3/v4 series (LGA2011-R3 socket)

Intel Xeon E5-2600 v3/v4 series (LGA2011-R3 socket)

CPU TDP

Up to 160 W

Up to 160 W

Frequency

Up to 3.5 GHz

Up to 3.5 GHz

Core Number

Up to 14

Up to 14

L3 Cache

15-45 MB

15-45 MB

BIOS

AMI EFI 128 Mbit

AMI EFI 128 Mbit

Chipset

Intel C612

Intel C612

Integrated Graphics

-

-

DMI

20Gb/s

20Gb/s

QPI

9.6 GT/s

9.6 GT/s

Memory

Technology

DDR4 ECC-REG 2400/2133/1866/1600 MHz

DDR4 ECC-REG 2400/2133/1866/1600 MHz

Capacity

Up to 512 GB

Up to 512 GB

ECC Support

Yes

Yes

Socket

16 x 288-pin DIMM

16 x 288-pin DIMM

REG Support

Yes

Yes

Display

Controller

Aspeed AST1400/2400

Aspeed AST1400/2400

Graphic Memory

Onboard memory 64MB

Onboard memory 64MB

Multiple Display

-

-

Display Interface

VGA: Up to1920 x 1200

VGA: Up to1920 x 1200

Expansion Interface

PCI Express x 16

3 (Gen3)

3 (Gen3)

PCI Express x 8

-

-

PCI Express x 4

-

-

PCI Express x 1

-

-

PCI

-

-

LPC

1

1

SMBus

1

1

PME

1 (Gen3)

1 (Gen3)

Ethernet

Controller

LAN1: Intel I210; LAN2: Intel I210

LAN1: Intel I210; LAN2: Intel I210; LAN3: Intel I210; LAN4: Intel I210

Speed

10/100/1000 Mbps

10/100/1000 Mbps

Connector

2 x RJ45

4 x RJ45

WatchDog Timer

Output

System Reset

System Reset

Interval

1 sec/min, Max 65535 sec/min

Programmable 1 ~ 255 sec/min

I/O

SATA

8 x SATA3 (SATA0-SATA5 and sSATA0-sSATA1 Supports software RAID 0, 1, 10 & 5)

8 x SATA3 (SATA0-SATA5 and sSATA0-sSATA1 Supports software RAID 0, 1, 10 & 5)

SAS Port

-

-

SAS controller

-

-

USB3.0

4

4

USB2.0

3

3

GPIO

8-bit

8-bit

LPT

-

-

COM Port

1 x RS232

1 x RS232

PS/2 Keyboard/Mouse

1

1

SPDIF

-

-

System Fan

3

3

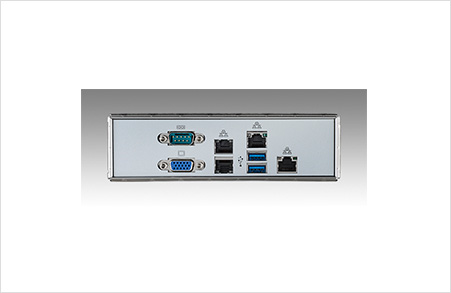

Rear I/O Interface

Display

-

-

LAN

2

2

USB3.0

2

2

USB2.0

-

-

COM

1 x RS232

1 x RS232

PS/2

-

-

DVI

-

-

Ethernet

2

1

VGA

2

1

Power Requirement

Voltage

+12V/+5V/+3.3V/+5Vsb/-12V

+12V/+5V/+3.3V/+5Vsb/-12V

Current

23.2A/0.5A/1.4A/0.09A/0.05A

23.2A/0.5A/1.4A/0.09A/0.05A

Environment

Operating-Temperature

0 ~ 45

0 ~ 45

Non-Operational Temperature

-40 ~ 85° C (-40 ~ 185° F)

-40 ~ 85° C (-40 ~ 185° F)

Non-Operating Vibration

3.5 Grms

3.5 Grms

Physical Characteristics

Dimensions (LxW)

304.8 x 330.2 mm (12" x 13")

304.8 x 330.2 mm (12" x 13")

Weight

-

-

Certification

EMC

CE, FCC

CE, FCC

Management Solution

Software

SUSIAccess 2.1

SUSIAccess 2.1

Out of band remote management

-

Intel I210 share NIC
