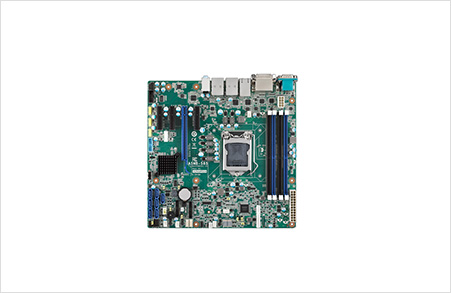

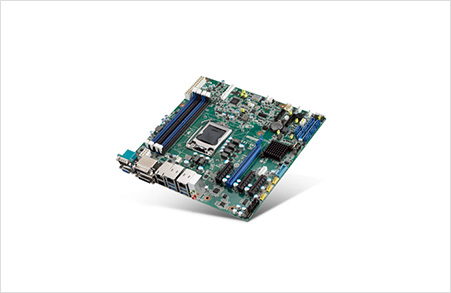

Part Number

ASMB-585G4-00A1E

Form Factor

Form Factor

Micro ATX

Processor System

CPU

Intel LGA1151 Xeon E3-1200 v5/v6 and 6th/7th Gen Core i3/i5/i7 series

CPU TDP

Up to 91W

Frequency

Up to 3.8 GHz

Core Number

Up to 4

L3 Cache

Up to 8MB

BIOS

AMI 128 Mbit SPI (UEFI)

Chipset

Intel C236 PCH

Integrated Graphics

-

DMI

-

QPI

-

Memory

Capacity

Up to 64 GB (16 GB per DIMM)

ECC Support

Yes

Socket

4 x 288-pin UDIMM

REG Support

-

Technology

Dual Channel DDR4 ECC/Non-ECC 1600/1866/2133/2400 MHz

Display

Controller

Intel HD graphics Integrated

Graphic Memory

Share system memory up to 1 GB with 2 GB and above memory installed

Multiple Display

Triple

Display Interface

VGA: Up to 1920 x 1200 DVI-D: Up to 1920 x 1200

Expansion Interface

PCI Express x 16

1

PCI Express x 8

-

PCI Express x 4

2

PCI Express x 1

1

PCI

0

LPC

1

SMBus

1

PME

-

Ethernet

Controller

1 x Intel I219-LM + 3 x Intel I210-AT

Connector

4 x RJ45

Speed

10/100/1000 Mbps

I/O

COM Port

5 x RS-232

GPIO

8-bit

LPT

0

PS/2 Keyboard/Mouse

1

SAS controller

-

SATA

7 x SATA III (RAID 0, 1, 5, 10)

System Fan

4

USB2.0

7

USB3.0

2

SAS Port

-

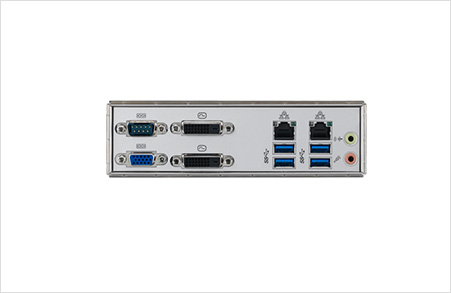

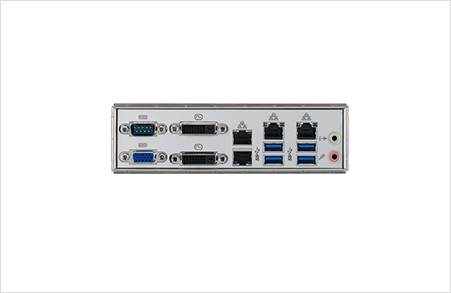

Rear I/O Interface

USB3.0

4

COM

1 (1 x RS232)

PS/2

-

DVI

2

Ethernet

43500

VGA

1

Power Requirement

Voltage

+12 V/+5 V/+3.3 V/+5 VSB/V12_8P/-12 V/ Total

Environment

Operating-Temperature

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational Temperature

-40 ~ 85° C @ 95% RH Non-Condensing

Non-Operating Vibration

3.5 Grms

Physical Characteristics

Dimensions (LxW)

244 x 244 mm (9.6" x 9.6")

Weight

0.5 kg

Certification

EMC

CE, FCC

Management Solution

Software

SUSIAccess

Out of band remote management

-
