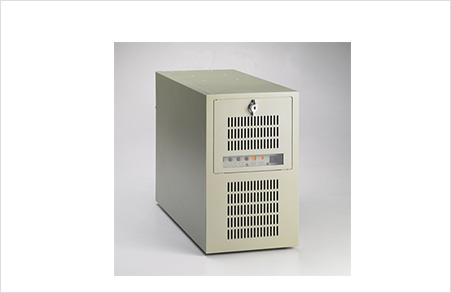

IPC-7220
为恶劣环境工厂或工业自动化应用设计
前端可安装2个5.25”磁盘驱动器,1个软驱和1个内置3.5” HDD
前门可锁,禁止未授权访问
前出线的USB和PS/2接口
前LED指示灯, 用于故障检测和警报通知
便于维护的空气过滤器
抗振驱动器托架设计
通过附带支架,可双向安装在面板或墙壁上
可选300W/400W冗余和DC输入电源
可选BP版本,用于8槽被动底板
规格

Part Number

IPC-7220-00BE

IPC-7220-30BE

IPC-7220-40BE

Front I/O Interface

PS/2

2 (1 x Keyboard, 1 x Mouse)

2 (1 x Keyboard, 1 x Mouse)

2 (1 x Keyboard, 1 x Mouse)

USB

2

2

2

Cooling

Air Filter

Yes

Yes

Yes

Fan

1 (12 cm / 85 CFM)

1 (12 cm / 85 CFM)

1 (12 cm / 85 CFM)

Environment

Operating-Temperature

0 ~ 45

0 ~ 45

0 ~ 45

Non-Operational Temperature

-20 ~ 60° C (-4 ~ 140° F)

-20 ~ 60° C (-4 ~ 140° F)

-20 ~ 60° C (-4 ~ 140° F)

Operating Shock

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

Operating Humidity

10 ~ 85% @ 40° C, non-condensing

10 ~ 85% @ 40° C, non-condensing

10 ~ 85% @ 40° C, non-condensing

Non-Operating Humidity

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

Operating Vibration (5 ~ 500 Hz)

1 Grms

1 Grms

1 Grms

Non-Operating Vibration (5 ~ 500 Hz)

2 G

2 G

2 G

Physical Characteristics

Weight

14 kg (30.8 lb)

14 kg (30.8 lb)

14 kg (30.8 lb)

Dimensions (W x H x D)

200 x 320 x 480 mm (7.9" x 12.6" x 18.9")

200 x 320 x 480 mm (7.9" x 12.6" x 18.9")

200 x 320 x 480 mm (7.9" x 12.6" x 18.9")

Disk Drive Bay

5.25" Front-Accessible

2

2

2

Miscellaneous

LED Indicators

Power, HDD, temperature, fan

Power, HDD, temperature, fan

Power, HDD, temperature, fan

Control

Power Switch, System reset, Alarm reset

Power Switch, System reset, Alarm reset

Power Switch, System reset, Alarm reset

Rear Panel

Reserved Two 9-pin D-Sub openings, one LPT opening

Reserved Two 9-pin D-Sub openings, one LPT opening

Reserved Two 9-pin D-Sub openings, one LPT opening

Power Supply

Power Supply

-

300W (Single)

400W (Single)
