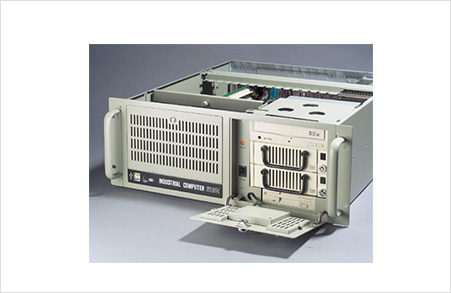

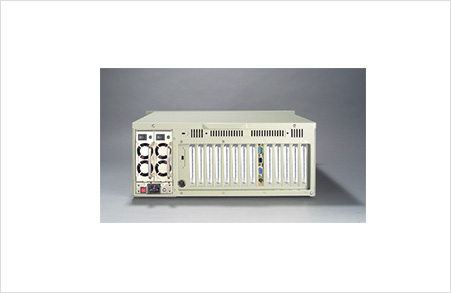

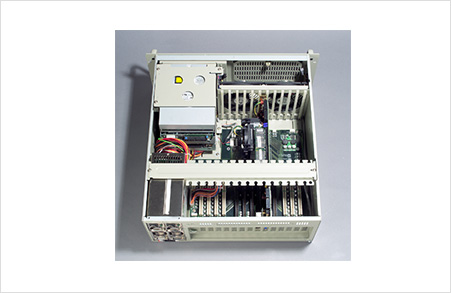

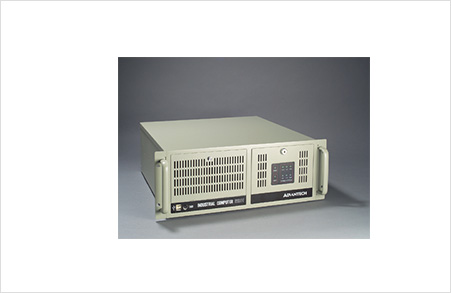

IPC-610-L
支持ATX 母板或 多达15槽的PICMG无源底板
抗冲击磁盘驱动器托架可支持3个5.25" 和1个3.5"磁盘驱动器
独特的固定压条设计带有橡胶垫脚,可以防止卡受到冲击或振动造成的损坏
电源和HDD活动性通知,改善系统性能

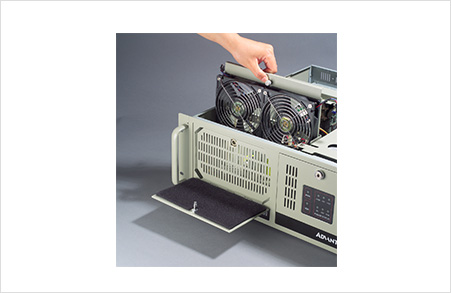

前部可访问空气过滤器,方便系统维护
可锁前门,防止未经许可的访问
灵活的机械设计,支持300 W单PS/2和冗余ATX电源
规格

Part Number

IPC-610BP-00LBE

IPC-610BP-50LBE

IPC-610MB-00LBE

IPC-611BP-00XBE

Form Factor

Form Factor

4U Rackmount

4U Rackmount

4U Rackmount

4U Rackmount

Cooling

Air Filter

Yes

Yes

Yes

Yes

Fan

1 (12 cm / 85 CFM)

1 (12 cm / 85 CFM)

1 (12 cm / 85 CFM)

1 (12 cm / 85 CFM)

Disk Drive Bay

3.5" External Bay

1

1

1

1

5.25 External Bay

3

3

3

3

Front I/O Interface

USB2.0

10 D-sub openings supporting up to 10 COMs with optinal COM cables

10 D-sub openings supporting up to 10 COMs with optinal COM cables

10 D-sub openings supporting up to 10 COMs with optinal COM cables

10 D-sub openings supporting up to 10 COMs with optinal COM cables

Environment

Operating-Temperature

0 ~ 45

0 ~ 45

0 ~ 45

0 ~ 45

Non-Operational Temperature

-20 ~ 60° C (-4 ~ 140° F)

-20 ~ 60° C (-4 ~ 140° F)

-20 ~ 60° C (-4 ~ 140° F)

-20 ~ 60° C (-4 ~ 140° F)

Operating Shock

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

Operating Humidity

10 ~ 85% @ 40° C, non-condensing

10 ~ 85% @ 40° C, non-condensing

10 ~ 85% @ 40° C, non-condensing

10 ~ 85% @ 40° C, non-condensing

Non-Operating Humidity

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

Operating Vibration (5 ~ 500 Hz)

1 Grms

1 Grms

1 Grms

1 Grms

Non-Operating Vibration (5 ~ 500 Hz)

2 G

2 G

2 G

2 G

Physical Characteristics

Weight

14.5 kg ( 31.9 lb )

14.5 kg ( 31.9 lb )

14.5 kg ( 31.9 lb )

14.5 kg ( 31.9 lb )

Dimensions (W x H x D)

482 x 177 x 479 mm (19" x 7" x 18.9")

482 x 177 x 479 mm (19" x 7" x 18.9")

482 x 177 x 479 mm (19" x 7" x 18.9")

482 x 177 x 479 mm (19" x 7" x 18.9")

Miscellaneous

LED Indicators

Power, HDD activity

Power, HDD activity

Power, HDD activity

Power, HDD activity

Graphics

Controller

Power, System reset button

Power, System reset button

Power, System reset button

Power, System reset button

Power Supply

Power Supply

-

500W (Single)

-

-
