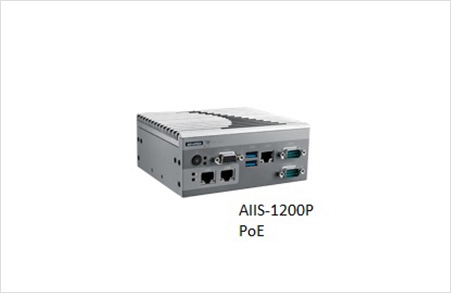

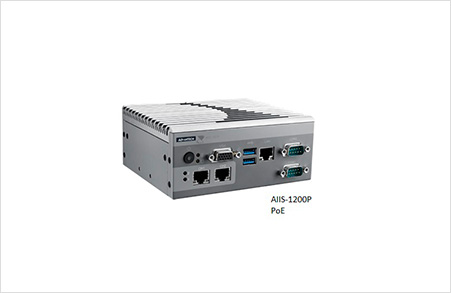

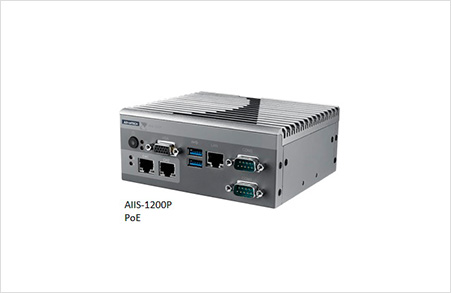

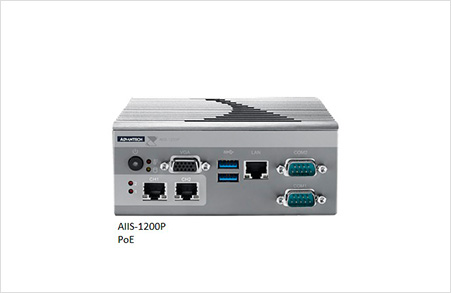

AIIS-1200
板载Intel® Braswell SoC Celeron N3160
AIIS-1200P:2通道 GbE PoE (以太网供电)-受电设备自动检测与分类-IEEE 802.3af 兼容并支持 IEEE 1588-兼容千兆位以太网摄像机
AIIS-1200U:2通道 USB 3.0 专用控制器-每个信道符合超快数据速率(5 Gbps)-兼容 USB 3.0 摄像机
紧凑&贴心设计:体积小于0.9升、隔离数字 I/O、壁挂或DIN导轨安装套件(可选)
规格

Part Number

AIIS-1200P-S6A1E

AIIS-1200U-S6A1E

Camera Interface

Ports

2

2

Technology

PoE

USB3.0

Processor System

CPU

Intel Celeron N3160

Intel Celeron N3160

Frequency

Up to 1.6 GHz

Up to 1.6 GHz

Core Number

4

4

L3 Cache

-

-

BIOS

AMI 64 Mb SPI Flash

AMI 64 Mb SPI Flash

Chipset

-

-

Memory

Socket

-

-

Max. Capacity

8 GB

8 GB

Technology

DDR3 1600 MHz

DDR3 1600 MHz

Ethernet

Controller

Inetl 1210-IT, 10/100/1000 Mpbs

Inetl 1210-IT, 10/100/1000 Mpbs

WatchDog Timer

Interval

Programmable 1 ~ 255 sec/min

Programmable 1 ~ 255 sec/min

Output

System Reset

System Reset

Expansion Slots

Mini PCIe

1

1

Storage

HDD

1 x internal 2.5" HDD Bay

1 x internal 2.5" HDD Bay

Front I/O Interface

USB3.0

2

2

Rear I/O Interface

USB3.0

2

2

Cooling

System Fan

Fanless

Fanless

Environment

Operating-Temperature

SSD: -10 ~ 60° C (-4 ~ 140° F); HDD: 0 ~ 40° C (32 ~ 104° F)with 0.7m/s air flow

SSD: -10 ~ 60° C (-4 ~ 140° F); HDD: 0 ~ 40° C (32 ~ 104° F)with 0.7m/s air flow

Operating Vibration

0.5 Grms

0.5 Grms

Operating Shock

10G, half sine wave, 11 ms duration

10 G (with 11 ms duration, half sine wave)

Physical Characteristics

Weight

1.1 Kg

1.1 Kg

Dimensions (W x H x D)

137 x 58 x 118 mm (5.39" x 2.28" x 4.65")

137 x 58 x 118 mm (5.39" x 2.28" x 4.65")

Miscellaneous

LED Indicators

Power, HDD, temperature

Power, HDD, temperature

Control

Power on/off switch

Power on/off switch

Graphics

Chipset Integrated

Integrated Intel HD Graphics

Integrated Intel HD Graphics
