Part Number

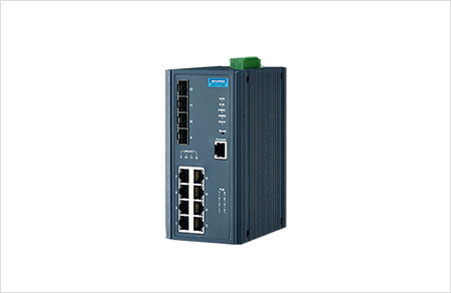

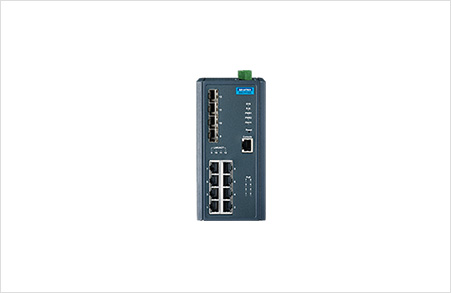

EKI-7712G-2FV-AE

Interface (...)

Ports Number

12

General (X)

Ethernet Connectors

8 x RJ-45 + 2 VDSL + 2 x SFP ports

I/O (X)

Transmission Speed

10/100/1000Base-T(X)

Power Supply (X)

Power Input

12 ~ 48 VDC

Operating System (X)

Temperature (Operating)

-10 ~ 60°C (14 ~ 140°F)

Communication (XX)

IEEE Standard

IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w

* Port Configuration

Ethernet Port Description

12 x 10/100/1000Base-T(X)

Ethernet Transmission Distance (X)

100 m

Ethernet PoE Port Number

-

Fiber Port Interface (X)

SFP

Fiber Port Description

2 x SFP(mini-GBIC)ports, 2 x VDSL2 ports

Fiber Transmission Distance (X)

Up to 110km, Up to 3000m (VDSL2)

Switch Properties

MAC Table Size

8K

Packet Buffer Size

4.1M bit

Switch Fabric Speed

24Gbps

Jumbo Frame

9,216 bytes

Mechanism

Dimensions (W x H x D)

74 x 152 x 105 mm

IP Rating

IP30

Enclosure

Metal

Weight

1.1kg

Mounting (X)

DIN-rail, Wall

Environment

Operating Temperature (X)

-10 ~ 60°C (14 ~ 140°F)

Storage Temperature (X)

-40 ~ 85°C (-40 ~ 185°F)

Relative Humidity (Non-condensing)

10 ~ 95%

MTBF

Time

1,001,782 hours

Method

Telcordia(Relax), GB

Power Requirement (X)

Operating Voltage

12 ~ 48 VDC

Operating Current

0.25A @ 48Vdc (system)

Power Consumption

12.1W (system)

Connectors

6-pin removable screw terminal ((power & relay)

Reverse Polarity

Present

Certification

EMI

CE, FCC Class A

Safety

UL 61010

EMC

EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Warranty

Warranty Period

5 years
