Part Number

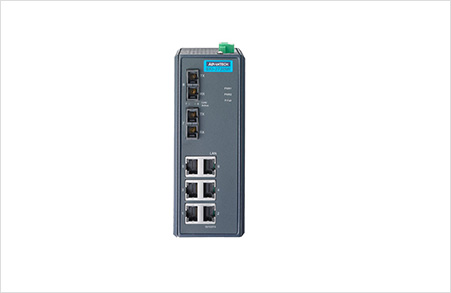

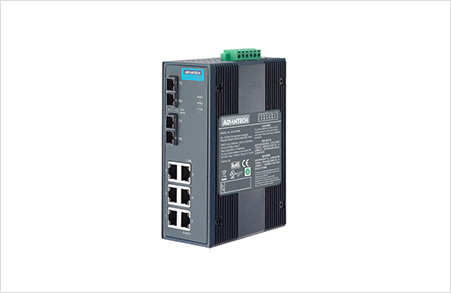

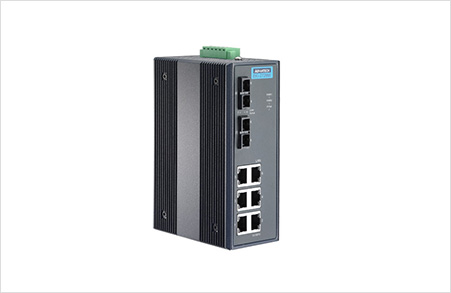

EKI-2728M-BE

Product Category

Unmanaged

Yes

Communication (XX)

IEEE Standard

IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3ab, 802.3z

Environment

Operating Temperature (X)

-10 ~ 60°C (14 ~ 140°F)

Storage Temperature (X)

- 40 ~ 85°C ( -40 ~ 185°F)

Relative Humidity (X)

5 ~ 95% (non-condensing)

Mechanism

Dimensions (W x H x D)

59.6 x 152 x 105 mm (2.35" x 5.98" x 4.13")

Enclosure

Metal

IP Rating

IP30

* Port Configuration

Fiber Port Description

2

Fiber Port Interface (X)

Multi-mode(SC type)

Fiber Transmission Distance (X)

Up to 550 m

Ethernet Port Description

6 x 10/100/1000Base-T(X)

Ethernet Transmission Distance (X)

100 m

General (X)

Mounting

DIN-rail, Wall

MTBF

Time

505,863 hours

Method

Telcordia(Relax), GB

Power Requirement (X)

Operating Voltage

12 ~ 48 VDC, 24VAC

Operating Current

1A @24VDC

Power Consumption

Max. 7 W

Connectors

6-pin removable screw terminal ((power & relay)

Reverse Polarity

Present

Certification

EMC

CE, FCC

EMI

EN 55011/ EN 55022 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A

EMS

EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Warranty

Warranty Period

5 years
