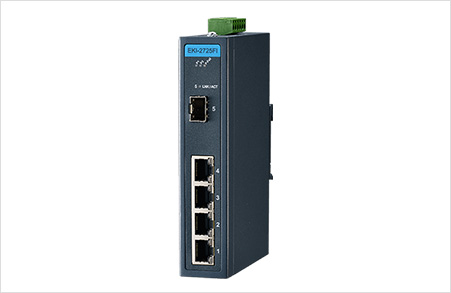

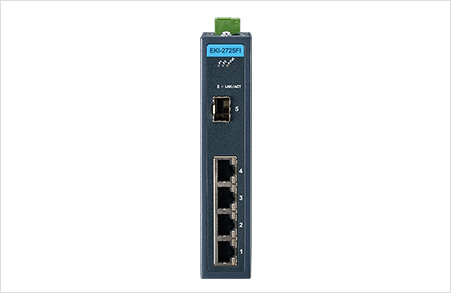

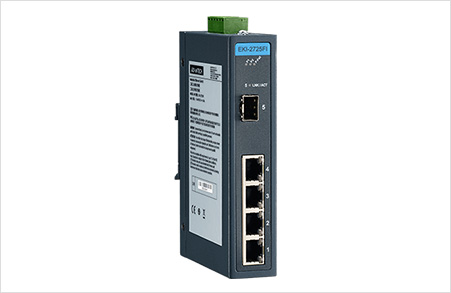

Part Number

EKI-2725FI-AE

Product Category

Unmanaged

Yes

Interface (...)

Ports Number

5

General (X)

Ethernet Connectors

4 x RJ-45 + 1 x SFP ports

I/O (X)

Transmission Speed

10/100/1000Base-T(X) ; 100/1000Base SFP Ports

Power Supply (X)

Power Input

12 ~ 48 VDC

Operating System (X)

Temperature

-40~75°C (-40~167°F)

Communication (XX)

IEEE Standard

802.3, 802.3u, 802.3x, 802.3ab, 802.3z

* Port Configuration

Ethernet Port Description

4 x 10/100/1000Base-T(X)

Ethernet Transmission Distance (X)

100 m

Ethernet PoE Port Number

-

Fiber Port Interface (X)

SFP

Fiber Port Description

1 x SFP(mini-GBIC)port

Fiber Transmission Distance (X)

Up to 110km

Switch Properties

MAC Table Size

2K

Packet Buffer Size

1Mbits

Switch Fabric Speed

10Gbit

Jumbo Frame

9,216 bytes

Mechanism

Dimensions (W x H x D)

30 x 140 x 95 mm (1.18" x 5.51" x 3.74")

IP Rating

IP30

Enclosure

Metal shell

Weight

0.45 Kg

Mounting (X)

DIN-rail, Wall

Environment

Operating Temperature (X)

-40 ~ 75°C (-40 ~ 167°F)

Storage Temperature (X)

-40 ~ 85°C (-40 ~ 185°F)

Relative Humidity (Non-condensing)

10 ~ 95%

MTBF

Time

TBD

Method

Telcordia, GB

Power Requirement (X)

Operating Voltage

12 ~ 48 VDC

Operating Current

1A @24VDC

Power Consumption

Max 2.5W

Connectors

6-pin removable screw terminal ((power & relay)

Reverse Polarity

Present

Certification

Safety

UL 60950

EMI

CE, FCC Class A

EMC

EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)

Freefall

IEC 60068-2-32

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-6

Warranty

Warranty Period

5 years
