Part Number

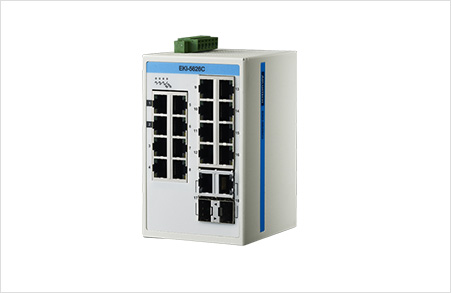

EKI-5626CI-AE

Product Category

Unmanaged

Yes

Communication (XX)

IEEE Standard

IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3az, 802.3ab

* Port Configuration

Ethernet Port Description

16 x 10/100BaseT(X), 2 x 10/100/1000Base-T(X)

Fiber Transmission Distance (X)

Up to 110km

Ethernet PoE Port Number

-

Fiber Port Interface (X)

SFP

Fiber Port Description

2

Ethernet Transmission Distance (X)

100 m

Switch Properties

MAC Table Size

8K

Packet Buffer Size

128K bit

Switch Fabric Speed

7.2Gbps

Jumbo Frame

9,216 bytes

Mechanism

Dimensions (W x H x D)

74 x 120 x 84 mm

IP Rating

IP30

Enclosure

Metal

Weight

500g

Mounting (X)

DIN-rail, Wall

Environment

Operating Temperature (X)

-10 ~ 60°C (14 ~ 140°F)

Storage Temperature (X)

-40 ~ 85°C (-40 ~ 185°F)

Relative Humidity (Non-condensing)

10 ~ 95%

MTBF

Time

2,825,281 hours

Method

Telcordia(Relax), GB

Power Requirement (X)

Operating Voltage

24 ~ 48 VDC, (8.4VDC ~ 52.8VDC)

Operating Current

0.2A @ 24V

Power Consumption

8.2 W

Connectors

6-pin removable screw terminal ((power & relay)

Reverse Polarity

Present

Certification

Safety

IEC/EN 60950-1,UL508, Class 1 Division 2, IECEx, ATEX

EMC

CE, FCC

EMI

(X) EN 55011/ EN 55022 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A

EMS

EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Warranty

Warranty Period

5 years
