处理器

CPU

4th Generation Intel® Core™ processors (22nm process technology)

Intel® Core™ i7-4770TE (8M Cache, up to 3.3 GHz); 45W

Intel® Core™ i5-4590T (6M Cache, up to 3.0 GHz); 35W

Intel® Core™ i5-4570TE (4M Cache, up to 3.3 GHz); 35W

Intel® Core™ i3-4350T (4M Cache, 3.1 GHz); 35W

Intel® Core™ i3-4340TE (4M Cache, 2.6 GHz); 35W

Intel® Core™ i3-4330TE (4M Cache, 2.4 GHz); 35W

Intel® Pentium® G3320TE (3M Cache, 2.3 GHz); 35W

Intel® Celeron® G1820TE (2M Cache, 2.2 GHz); 35W

芯片组

Chipset: Intel® H81 Express Chipset

网络

1 Intel®I210 PCI Express Gigabit Ethernet controller

1 Intel ®I217 Gigabit Ethernet Phy

3 Intel®WG82574L PCI Express Gigabit Ethernet controllers

Integrated 10/100/1000 transceiver

Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

内存

双通道 ,2x204-pin DDR3 SODIMM sockets，最大支持16GB（由内存模块决定）

显示

Intel®HD Graphics

Display port: 1 VGA

VGA: 24-bit, resolution up to 1920x1200 @ 60Hz

支持系统

Windows XP (32-bit)(limited function)Windows 7, WES 7, Windows 8, WE8S

Linux (Distribution available upon request)

存储

2x2.5" SATA drive bays- SATA 3.0 port with data transfer rate up to 6Gb/s

Supports 1 mSATA module via the mini PCIe socket

看门狗定时器

Watchdog timeout programmable via software from 1 to 255 seconds

扩展

ECW510

1 PCI slot

1 Mini PCIe slot

Supports USB and PCIe signals

Supports mSATA, Wi-Fi or 3G*

Supports half size or full size Mini PCIe card

ECW511

1 PCIe x16 slot

1 Mini PCIe slot

Supports USB and PCIe signals

Supports mSATA, Wi-Fi or 3G*

Supports half size or full size Mini PCIe card

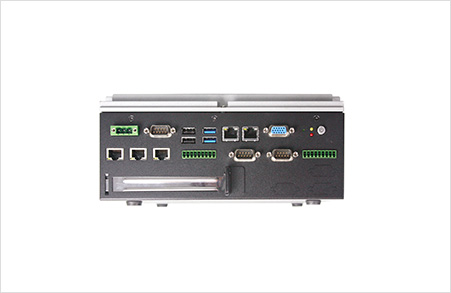

面板输出

1 power button with LED

1 reset button

1 power LED

1 HDD LED

1 VGA port

5 RJ45 LAN ports

2 Type A USB 2.0 ports

2 Type A USB 3.0 ports

2 DB-9 RS232/422/485 serial ports (with power)

4 DB-9 RS232 serial ports

1 9~36V DC-in 3-pole terminal block

2 8-bit DIO 10-pole terminal blocks

电源

Power input voltage: 9~36V DC-in

重量

4kg

外形尺寸

235mm x 102.5mm x 222mm (W x H x D)

工作环境

Temperature

Operating: 0°C ~ 45°C

Storage: -20°C ~ 85°C

Operating Vibration

IEC68-2-64

Operating Shock

Half sine wave 3G, 11ms, 3 shock per axis

安装方式

Wall mount

Mounting brackets and screws
