处理器

Support Intel 4th Gen CPU (up to 35W)

芯片组

Intel Q87 chipset

显示

Intel HD Graphics 4600

Shared system memory up to 1.7 GB SDRAM

3 Independent Displays

DP up to 3840 * 2160

DVI-I up to 1920 * 1200

内存

Dual-channel DDR3 1600/1333MHz Up to 16GB

2 * 204-pin SO-DIMMs

存储

2 * 2.5” HDD/SSD，Support AHCI and RAID 0, 1

网络接口

1 * Intel 1217GbE-PHY LAN

1 * Intel 1210-AT

CF卡槽

1 * CFast 2.0 socket

扩展

1*PCIe×16; 3*PCI

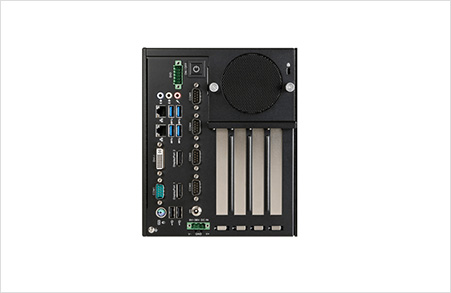

I/O接口

Audio: 1* Mic-in

1 * Line-out

1 * Line -in

USB: 4 * USB3.0

3 * USB2.0 (one port w/security key)

Serial: 5 * COM ports

COM1: RS232/422/485/,0V/5V/12V

COM2: RS232/422/485/,0V

COM3-5: RS232,0V

PS/2 * 1

DVI-I *1

DisplayPort * 2

环境

Operating Temperature: -10-50℃w /industrial DC power

Operating Humidity:10-90%, non-condensing

Storage Temperature:-20-80℃

Storage Humidity:0-90%,non-condensing

电源

DC-In 9-36V Wide-Range pluggable connectors with latch (GND,V-,V+)

操作系统

Windows XP (32/64-bit)

Windows 7 (32/64-bit)

Windows 8.1 (64-bit)

Windows 10 (64-bit)

安装方式

Wall mount

安规认证

CE, FCC Class A, VCCI, C-Tick, BSMI, RoHS, TUV

重量

4.86kg

外形尺寸

175mm * 225mm * 218mm
