Part Number

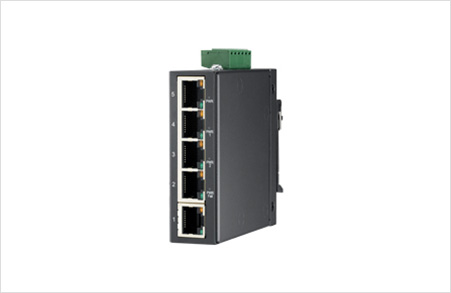

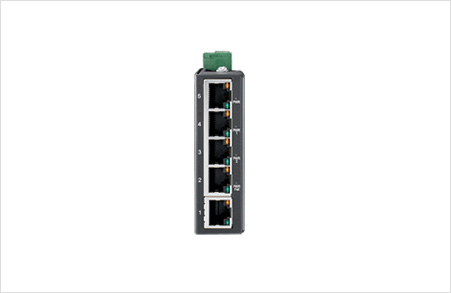

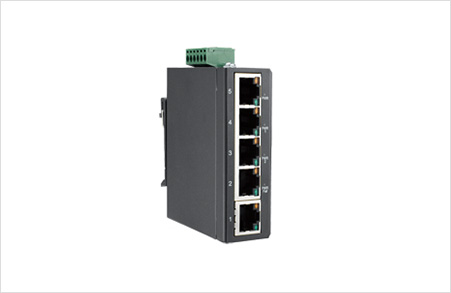

EKI-2525LI-AE

Certification

EMI

EN 55022/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A

Freefall

IEC 60068-2-32

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-6

EMC

CE, FCC

Warranty

Warranty Period

5 years

MTBF

Method

Telcordia(Relax), GB

Power Requirement (X)

Connectors

6-pin removable screw terminal ((power & relay)

Operating Current

0.23A @ 24V

Operating Voltage

12 ~ 48 VDC

Reverse Polarity

Present

Power Consumption

3.1W

Switch Properties

Packet Buffer Size

448Kbit (0.4375Mbits)

MAC Table Size

2K

Jumbo Frame

9,216 bytes

Switch Fabric Speed

1.0Gbps

Communication (XX)

IEEE Standard

IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3az, 802.3ab

Environment

Operating Temperature (X)

-40 ~ 75°C (-40 ~ 167°F)

Relative Humidity (X)

10 ~ 95% @ 40° C (non-condensing)

Storage Temperature (X)

-40 ~ 85°C (-40 ~ 185°F)

Mechanism

Dimensions (W x H x D)

25 x 80 x 84 mm

Enclosure

Metal shell

IP Rating

IP40

Mounting (X)

DIN-rail, Wall mount

Weight

500g

* Port Configuration

Ethernet Port Description

5 x 10/100/1000BaseT(X)

Ethernet Transmission Distance (X)

100 m
