Part Number

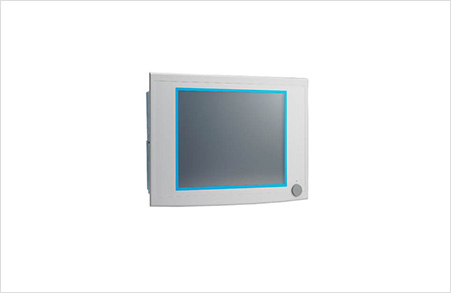

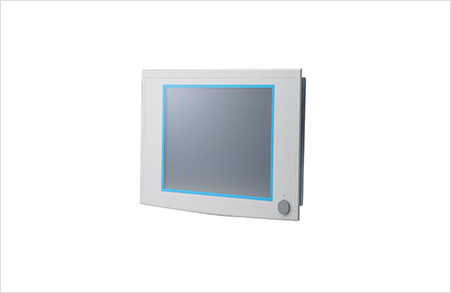

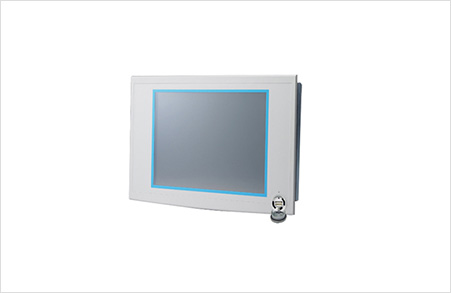

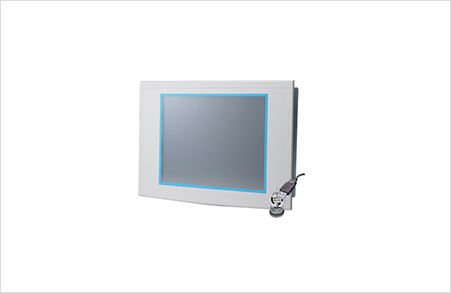

IPPC-6152A-R2AE

Display

Backlight Life (hrs)

50,000 hrs

Contrast Ratio

700 : 1

Luminance (cd/m2)

400

Max. Colors

16.2M/262K

Max. Resolution

1024 x 768

Size

15"

Type

XGA TFT LCD LED Backlight

Viewing Angle (H/V°)

160/140

Environment

Humidity (Operating)

5 ~ 85% @ 40°C (non-condensing)

Ingress Protection

Front panel: IP65

Temperature (Operating)

0 ~ 50° C (32 ~ 122° F)

Temperature (Storage)

-20 ~ 60° C (-4 ~ 140° F)

Vibration Protection

5 ~ 500 Hz, 1 GRMS random vibration

General

BIOS

AMI 64 MB Flash BIOS

Certifications

UL, CE, FCC, CCC, BSMI

Dimensions

449.92 x 315.63 x 126.4 mm (17.71" x 12.43" x 4.98")

Mounting

Panel, Rack (option)

OS Support

Microsoft Windows 7, Windows 8

Power Input

100 ~ 240 VAC @ 60 ~ 50 Hz, 7 ~ 3.5 A

Power Supply

350 W

Weight (Gross)

-

System Hardware

Chipset

Intel Q87

CPU

Supports Intel® Core™ i7/i5/i3 processor (up to 3.1GHz )

Expansion Slots

2 x half-length PCI Slot installed.(1x two slot PCIE x1 riser optional)

LAN

10/100/1000Base-T Ethernet x 2

Memory

System supports four DIMM sockets support up to 32GB DDR3 1333/1600 MHz SDRAM

Storage

Supports 2 x 2.5“ SATA 2.0 or SATA 3.0 HDDs and RAID 0,1 compatibility

Touchscreen

Lifespan

36 million with a silicone rubber of R8 finger, writing rate is by 250g at 2 times/s

Touch Type

Analog Resistive 5-wire

Light Transmission

> 80%
