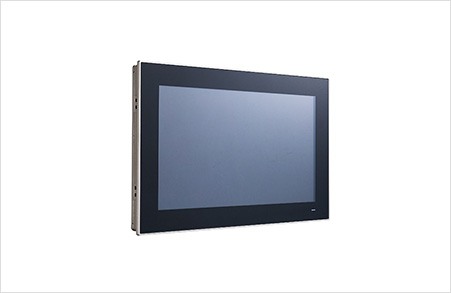

Part Number

PPC-3150SW-PN4A

Processor System

CPU

Intel® Pentium® N4200 quad core

Frequency

1.1 GHz

2nd Cache Memory

3 MB

Memory

1 x SO-DIMM, DDR3L 1333, Max 8 GB

Storage 1

1 x 2.5" SATA bay, 1 x mSATA bay

Network (LAN)

2 x 10/100/1000 Mbps Ethernet (Intel I211)

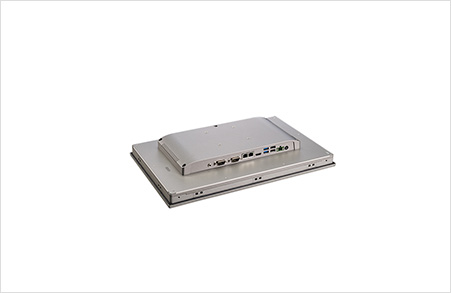

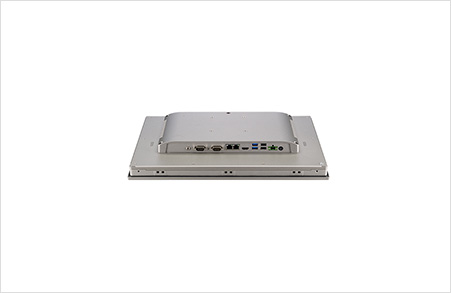

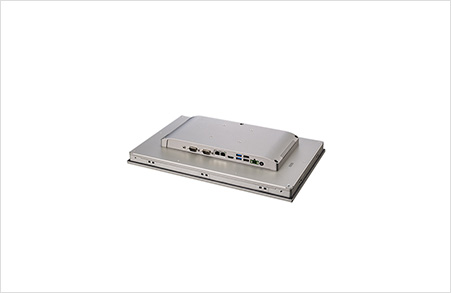

I/O Ports

2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485;2 x USB 3.0, 2 x USB 2.0;1 x Line-out;1 x HDMI

Expansion Slots

1 x Full size Mini PCIe slot

Watchdog Timer

255 timer levels; setup by software

Physical Characteristics

Dimensions

419.7 x 269 x 58.6 mm (16.52 x 10.59 x 2.3 in)

Weight

4.7 kg (10.36 lb)

OS Support

OS Support

Microsoft® Windows 10 (64-bit), Linux, Android

Power Supply

Input Voltage

12-24 VDC

Power Consumption

33W

LCD Display

Display Type

15.6" TFT LCD (LED Backlight)

Viewing Angle (H/V°)

85 (left), 85 (right), 80 (up), 80 (down)

Max. Resolution

1366 x 768

Luminance (cd/m2)

400

Contrast Ratio

20.8340277778

Backlight Life

50, 000 hrs

Touchscreen

Touch Type

Projected capacitive touch

Light Transmission

90% ± 2%

Controller

USB interface

Environment

Operating Temperature

0 ~ 50°C (32 ~ 122°F) with SSD, 0 ~ 40°C (32 ~ 104°F) with HDD

Storage Temperature

-20 ~ 60°C (-4 ~ 140°F)

Relative Humidity

10 ~ 95% @ 40°C non-condensing

Shock

Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27

Vibration

Operating Random Vibration Test 5~500Hz, 1Grms, follow IEC 60068-2-64

EMC

CE, FCC Class B, BSMI

Safety

CB, CCC, BSMI, UL

Front Panel Protection

IP65 Compliant
