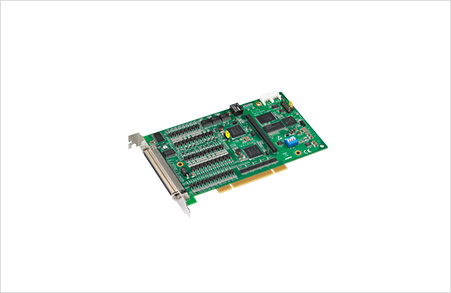

Part Number

PCI-1245-AE

General

Power Consumption

Typical: 5 V @ 850 mA; Max.: 5 V @ 1 A

Temperature (Operating)

0 ~ 60°C (32 ~ 140°F)

Humidity

5 ~ 95% RH, non-condensing (IEC 60068-2-3)

Temperature (Storage)

-20 ~ 85°C (-4 ~ 185°F)

Bus

Universal PCI V2.2

Dimensions

175 x 100 mm (6.9" x 3.9")

Connector

1 x 100-pin SCSI Female Connector

Advanced Function

Servo On Output Channels

4

Encoder Interface

Isolation Protection

2,500 VDC

Input Type

Quadrature (A/B phase) or up/down

Input Range

5 ~ 15 V

Max. Input Frequency

10 MHz under 4xAB mode

Axes

Linear Interpolation

V

2-axis Circle<br>Interpolation

V

Number of Axes

4

Advanced Functions

General Purpose<br>DO Channels

16

General Purpose<BR>DI Channels

16

Pulse Type Motion Control

Motor Driver Support

Servo/stepping

Interpolation

2 to 4-axis linear, 2-axis circular, X-Y plane with Z thread helical interpolation

Max. Output Speed

5 Mbps

Step Count Range

±2, 147, 483, 646

Pulse Output Type

Pulse/direction (1-pulse, 1-direction type) or CW/CCW (2-pulse type)

Position Counters

Range of command and actual position

Velocity Profiles

T-Curve, S-Curve

Machine Interfaces

LMT+, LMT-, ORG

Servo Driver Interfaces

ALM, INP

General Digital I/O

16-ch DI, 16-ch DO
