Part Number

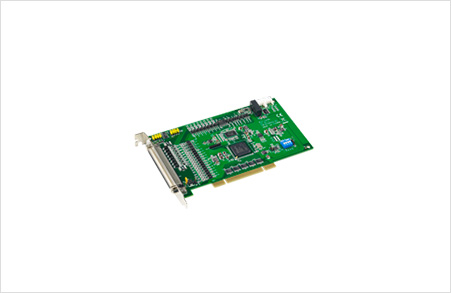

PCI-1274-12AE

Encoder Interface

Counts per Enc. Cycle

x1, x2, x4 (A/B phase only)

Input Range

5 ~ 10 V

Input Type

Quadrature (A/B phase) or up/down

Isolation Protection

2,500 VDC

Max. Input Frequency

4 MHz under 4xAB mode

General

Bus Type

Universal PCI V2.2

Connectors

1 x 100-pin SCSI female connector

Dimensions (L x H)

175 x 100 mm (6.9" x 3.9")

Humidity

5 ~ 95% RH, non-condensing (IEC 60068-2-3)

Operating Temperature

0 ~ 60°C (32 ~ 140°F)

Power Consumption

Typical: 5 V @ 0.6 A, Max.: 5 V @ 1 A

Storage Temperature

-20 ~ 85°C (-4 ~ 185°F)

Pulse Type Motion Control

Local I/O

Machine Interfaces: LMT+, LMT-, ORG / Servo Driver Interfaces: ALM, INP / General Digital I/O: 16-ch DI, 16-ch DO (RDY pin can be switchable to general-purpose input and SVON/ERC pin to general purpose

Position Counters

Range of command and actual position

Velocity Profiles

T-Curve, S-Curve

Pulse Output Type

Pulse/direction (1-pulse, 1-direction type) , CW/CCW (2-pulse type) or single-ended +5V output

Interpolation

2-axis linear interpolation

Max. Output Speed

1 Mbps

Motor Driver Support

Pulse-type servo/stepping

Number of Axis

4

Step Count Range

±2, 147, 483, 646
