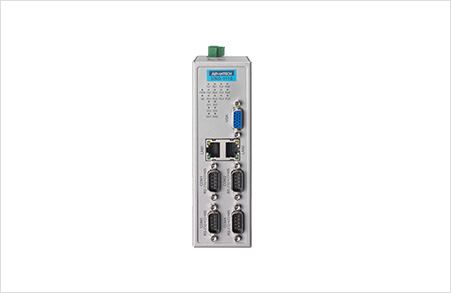

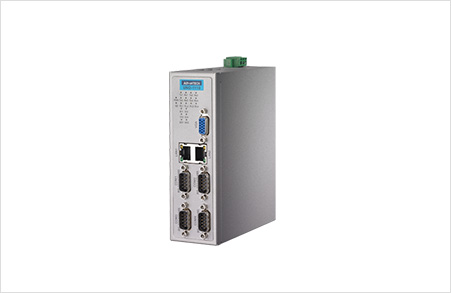

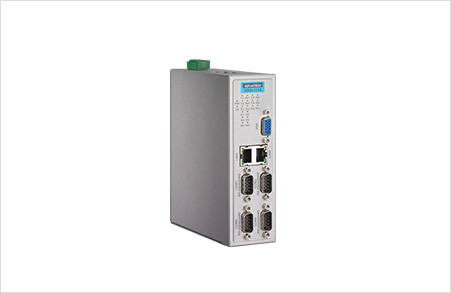

Part Number

UNO-1110-R11AE

General

Power Consumption

10 ~ 30 VDC (13 W), AT, ground isolation, dual power inputs

Mounting

DIN-rail, Wallmount

Certifications

CE, FCC class A, UL, CCC

Weight

0.45 kg

Enclosure

Aluminium with solid mounting hardware

Industrial Grounding

Isolation between chassis and power ground

System Design

Fanless design with no internal cabling

Dimensions

50 x 154 x 127 mm (1.9" x 6.1" x 5")

System Hardware

CPU

TI Cortex A8 AM3505 600 MHz

Memory

Onboard 256 MB DDR2

Storage

2 x SD card slot (built-in 1GB SD card for boot)

Display

DB15 VGA connector, up to 1024 x 768

Indicators

Power, Serial (Tx, Rx), SD, 4 x DI/2 x DO, 4 x programmable LED

Expansion

1 x Mini PCIe card slot (Signal Protocol: USB Differential)

Other

Realtime clock, Watchdog timer

SIM

1 x card slot (reserved for project and will only have 1 x SD card slot left)

I/O Interface

Serial Ports

4 x RS-232/422/485**, 1 x RS-485 **COM3,4 optional isolation by project Automatic RS-485 data flow control, DIP Switch configuration

LAN

2 x 10/100Base-T RJ-45 ports

USB

4 x USB 2.0

Environment

Temperature (Operating)

-10 ~ 70°C (14 ~ 158°F)

Temperature (Storage)

-40 ~ 80°C (-4 ~ 176°F)

Humidity (Operating)

20 ~ 95% (Non-condensing)

Ingress Protection

IP40

Vibration Protection

Random 1Grms

Shock Protection

Half-sine wave, 30G, 11ms

System Software

Remote Management

Built-in Advantech DiagAnywhere agent on Windows
