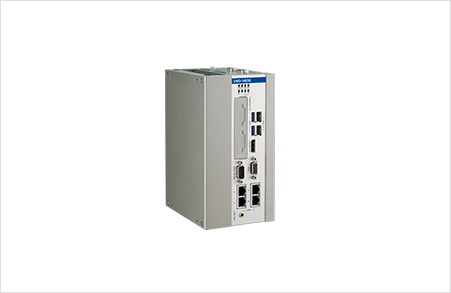

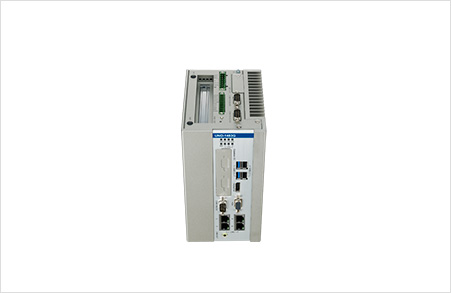

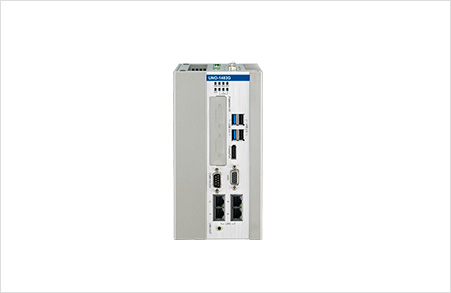

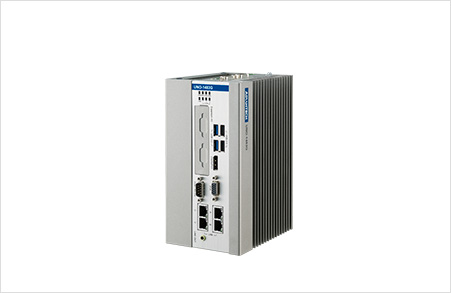

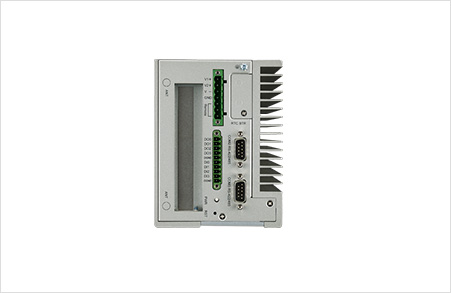

Part Number

UNO-1483G-434AE

General

Certifications

CE, FCC, UL, CCC, BSMI

Enclosure

Aluminum Housing

Mounting

DIN-rail, Wallmount

OS Support

Microsoft® Windows 7/8, WES7,WIN10 Ent. LTSB, AdvLinux

Power Consumption

41W (Typical), 60W(Max)

Weight (Net)

2.4kg (5.3lbs)

Power Requirement

12V/24VDC ± 20%

Form factor

Regular Size

Dimensions ( W x D x H )

106 x 139 x 198 mm (4.2" x 5.8" x 7.8")

System Hardware

Storage

One drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD)

Watchdog Timer

Programmable 255 levels timer interval, from 1 to 255 sec

System Chip

Integrated Intel 8 Series Chipset

Graphics Engine

Intel® HD Graphics 4400

Expansion

1 x Full-size mPCIe slot, mPCIe 2.0, 1 x Half-size mPCIe slot w/ PCIe signal, 1 x PCIex1 slot

Memory

1 x Full-size mPCIe slot, mPCIe 2.0, 1 x Half-size mPCIe slot w/ PCIe signal, 1 x PCIex1 slot

Processor

Intel® 4th Gen Core™ i3-4010U ULT 1.7 GHz Dual Core, 3MB L2

Ethernet

LAN B/C/D: Intel® i210-IT GbE, LAN A: Intel® i218-LM GbE

LED Indicators

LEDs for Power, battery, LAN (Active, Status)

I/O Interface

Serial Ports

1 x RS-232, DB9, 50~115.2kbps, 1 x RS-422/485, DB9, auto flow control, 50~115.2kbps

Power Connector

1x 7 Pins, Terminal Block to support dual power input and remote power control

LAN Ports

4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet

Isolated DI/O

4-ch digital input,(Wet/dry contact, 4-ch digital output (2500 VDC)

USB Port

4 x USB Ports (2 x USB2.0, 2 x USB3.0)

Displays

1 x VGA, supports 1920 x 1080 @ 60Hz 24bpp, 1 x HDMI 1.4a, supports 1920 x 1080 @ 60Hz 24bpp

Audio

Line-out

Environment

Shock Protection

Operating, IEC 60068-2-27, 50G, half sine, 11ms

Relative Humidity

10 ~ 95% @ 40°C non-condensing

Operating Temperature

-20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow

Vibration Protection

Operating, IEC 60068-2-64, 1Grms, random, 5 ~ 500Hz, 1 hr/axis

Storage Temperature

-40 ~ 85°C (-40~185°F)
