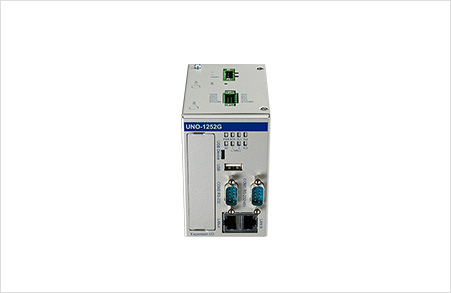

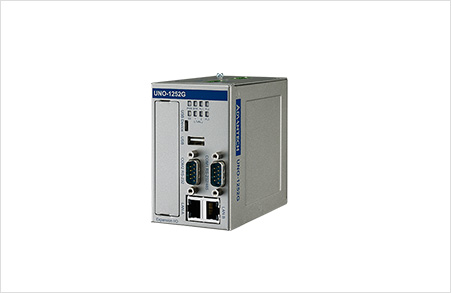

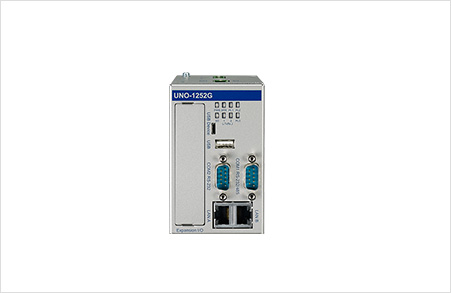

UNO-1252G
英特尔® Quark™ X1001 400 MHz 微控制器,256MB内存
2×LAN,2×mPCIe,1×RS-232,1×RS-232/485,8×DI/O,2×USB,1×1GB microSD卡,1×SIM
具备串口和隔离数字I/O端口
机壳接地保护
紧凑型无风扇设计
导轨安装设计
可通过iDoor模块扩展GPRS/3G/GPS/Wi-Fi通讯功能
支持 Yocto Linux系统
规格

Part Number

UNO-1252G-Q0AE

Advantech WebAccess Professional

Action Logs

1500

General

Certifications

CE, FCC, CCC, BSMI, UL

Power Consumption

10 W (Typical)

Mounting

DIN-rail

Enclosure

Aluminum Housing

OS Support

Yocto Linux

Weight (Net)

0.6 kg (1.32 lbs)

Power Requirement

10~36 VDC

Form factor

Micro Size

Dimensions ( W x D x H )

63 x 105 x 100 mm (2.48" x 4.13" x 3.94")

System Hardware

Storage

Built-in 1GB micro SD card, up to 32GB

Memory

On-board 256 MB DDR3 800 MHz

BIOS

8MB SPI Flash

Processor

Intel Quark X1001 400 MHz

System Chip

Integrated Intel SoC Chipset

LED Indicators

LEDs for Power (PWR) , battery (BTR), COM1~2 (Tx/Rx) and microSD (SD)

Expansion

2 x Full size mPCIe slot (1 x USB signal, 1 x PCIe signal)

I/O Interface

Power Connector

1 x 3 Pins, Terminal Block

USB Port

1 x USB 2.0 (type-A), 1 x USB Client (micro-B)

Grounding Protection

Chassis Grounding

LAN Ports

2 x RJ-45, 10/100Mbps

Isolated Serial Ports

1 x RS-232, DB9, 50~115.2 kbps, supports console debug; 1 x RS-232/485, DB9, 50~115.2 kbps (Isolation Protection 1000 VDC)

SIM

1 x SIM card slot

Isolated DI/O

4-ch digital input, 4-ch digital output (Isolation Protection 1000 VDC , Overvoltage protection 30 VDC, default wet contact)

Environment

Relative Humidity

10 ~ 95% RH @ 40°C, non-condensing

Vibration Protection

Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1 hr/axis

Shock Protection

Operating, IEC 60068-2-27, 50G, half sine, 11ms

Operating Temperature

-20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow

Storage Temperature

-40 ~ 85°C (-40 ~ 185°F)
