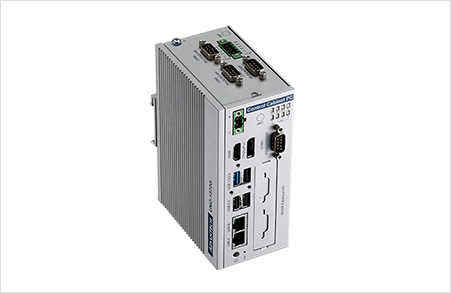

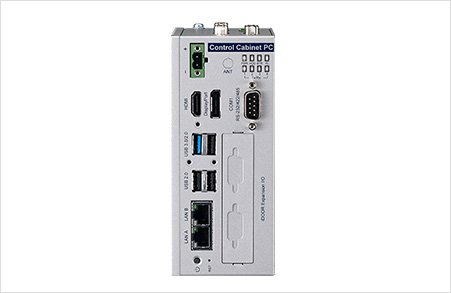

Part Number

UNO-1372G-J021AE

General

Certifications

CCC, CE, FCC, UL, BSMI

Power Consumption

19W(Typical) 35W(Max)

Mounting

DIN-rail

OS Support

Microsoft® Windows 7/8/10, WES7, AdvLinux

Enclosure

Aluminum Housing

Power Requirement

10~36 VDC

Weight (Net)

1.0kg (2.2lbs)

Dimensions

65 x 105 x 150mm (2.6" x 4.1" x 5.9")

Form factor

Small Size

System Hardware

Memory

Built-in 4GB DDR3L 1333 MHz (Up to 8GB)

Storage

1 x mSATA shared with mPCIe slot, 1 x drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD)

BIOS

AMI UEFI 64Mbit Flash BIOS

LED Indicators

LEDs for Power, RTC battery, LAN (Active, Status), COM (Tx/Rx), HDD, Programmable LED

Watchdog Timer

Programmable 6 levels timer interval, from 15 to 255 sec

Expansion

2 Full-size mPCIe

Processor

Intel Celeron Quad Core J1900 2.0 GHz

System Chip

Integrated Intel SoC Chipset

Ethernet

Intel® i210-IT GbE, 802.1Qav, 802.1AS, 802.3az

Graphics Engine

Intel® HD Graphics

Trusted Platform Module

TPM2.0

I/O Interface

Isolated Serial Ports

4 x RS232/422/485, DB9, 50 ~ 115.2kbps (Isolation Protection 1500VDC)

USB Port

4 x USB Ports (3 x USB 2.0, 1 x USB 3.0 compliant)

LAN Ports

2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet

Grounding Protection

Chassis Grounding

Isolated DI/O

4-ch digital input (Default contact) 4-ch digital output (2500 VDC)

Displays

1 x DP, supports 2560 x 1440 @ 60Hz;1 x HDMI, supports 1920 x 1080 @ 60Hz

Power Connector

1x 2 Pins, Terminal Block

Environment

Ingress Protection

IP40

Relative Humidity

95% RH @ 40°C, non-condensing

Shock Protection

Operating, IEC 60068-2-27, 50G, half sine, 11ms

Vibration Protection

Operating, IEC 60068-2-64, 1Grms, random, 5 ~ 500Hz, 1 hr/axis

Operating Temperature

- 20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow (Industry SSD)

Storage Temperature

-40 ~ 85°C ( -40 ~ 185°F)
