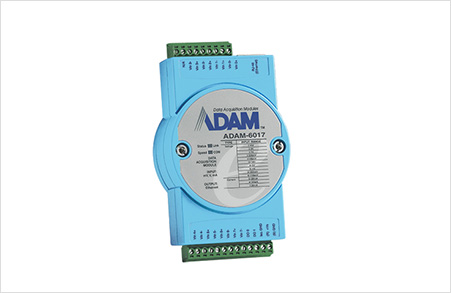

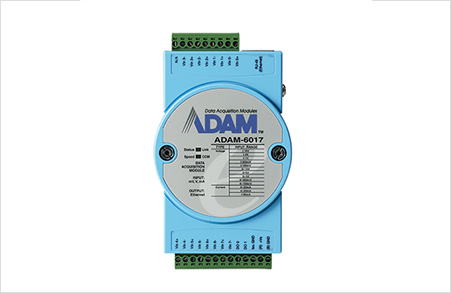

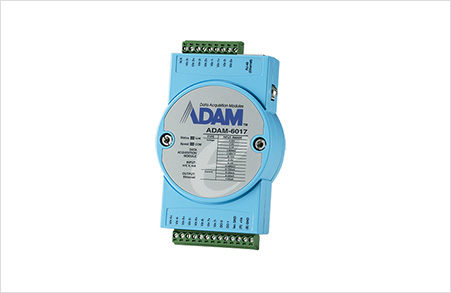

Part Number

ADAM-6017-D

Display

LED Indicators

Status, Comm, Link, Speed

Power Supply

Power Requirement

10~30 VDC

Analog Input

Channel Independent Configuration

Yes

Sampling Rates

10 or 100 sample/second

Resolution

16-bit

Channels

8 differential

Voltage Range

±150 mV ±500 mV ±1 V ±5 V ±10 V, 0~150mV, 0~500 mV, 0~1V, 0~5V, 0~10V

Current Input

0~20 mA, 4~20 mA, ±20 mA

Input Impedance

Voltage: >10 MOhm Current: 120 Ohm

Span Drift

±25 ppm/°C

Zero Drift

± 6 µV/° C

General

Watchdog Timer

System (1.6 second) & Communication (programmable)

Temperature (Operating)

-40 ~ 70°C (-40 ~ 158°F)

Humidity

20~95 %RH

Temperature (Storage)

-40~85°C (-40~185 °F)

Interface

10/100Base-T(X)

Peer-to-Peer

Yes

GCL

Yes

Isolation Protection

2000 VDC

Communication Protocol

Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, SNMP, MQTT

Communication Speed

Ethernet: 10/100Mbps

Comm. Distance

Ethernet: 100 m

Connector

1 x RJ-45 (LAN) & 2 x plug-in terminal block (I/O and power)

Digital Output

Channels

2, open collector to 30V, 100 mA max. load

Power Dissipation

300 mW for each module
