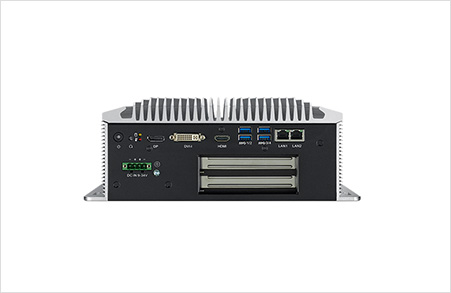

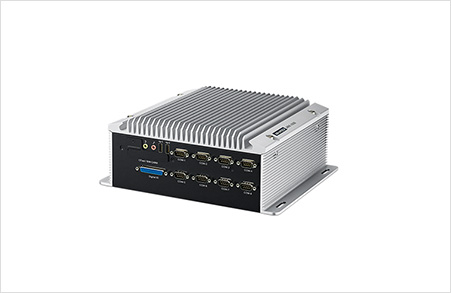

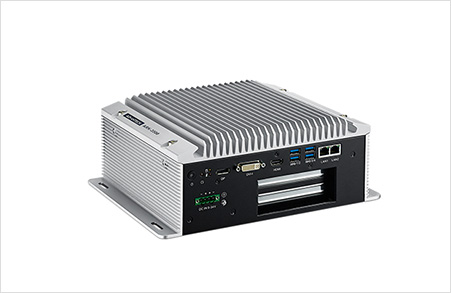

Part Number

ARK-3500F-00A1E

ARK-3500P-00A1E

Processor

CPU

Intel 3rd Gen Core i7-3610QE/Core i5-3610ME/Core i3-3120ME/Celeron 1020E

Intel 3rd Gen Core i7-3610QE/Core i5-3610ME/Core i3-3120ME/Celeron 1020E

Core Number

4 / 2 / 2 / 2

4 / 2 / 2 / 2

Frequency

2.3 GHz/2.7 GHz/2.4 GHz/2.2GHz

2.3 GHz/2.7 GHz/2.4 GHz/2.2GHz

L3 Cache

6 / 3 / 3 / 2 MB

6 / 3 / 3 / 2 MB

Watts

45/35/35/35W

45/35/35/35W

System Chipset

Intel QM77

Intel QM77

BIOS

AMI EFI 64Mbit

AMI EFI 64Mbit

Memory

Technology

DDR3/DDR3L 1600MHz

DDR3/DDR3L 1600MHz

Max. Capacity

16 GB

16 GB

Socket

2 x 204-pin SO-DIMM

2 x 204-pin SO-DIMM

Graphics

Chipset

Intel QM77 Integrated GFX Gen 7

Intel QM77 Integrated GFX Gen 7

Graphic Engine

DirectX11, OpenGL 3.1, and Open CL 11; Hardware decode acceleration: AVC/H.264, MPEG-2, VC-1

DirectX11, OpenGL 3.1, and Open CL 11; Hardware decode acceleration: AVC/H.264, MPEG-2, VC-1

CRT

VGA integrated in DVI-I port

VGA integrated in DVI-I port

DVI-I

1920 x 1200 @ 60 Hz

1920 x 1200 @ 60 Hz

HDMI

Support HDMI 1.4, 1920 x 1200 @ 60 Hz

Support HDMI 1.4, 1920 x 1200 @ 60 Hz

Display port

2560 x 1600 @ 60Hz (Video only, and only support on 3rd generation processor)

2560 x 1600 @ 60Hz (Video only, and only support on 3rd generation processor)

Dual Display

VGA+DVI, VGA+HDMI, VGA+DP, DVI+HDMI, DVI+DP, HDMI+DP(DP not support on Celeron sku.)

VGA+DVI, VGA+HDMI, VGA+DP, DVI+HDMI, DVI+DP, HDMI+DP(DP not support on Celeron sku.)

Triple Display

DVI-D + HDMI + DisplayPort(not support on Celeron sku.)

DVI-D + HDMI + DisplayPort(not support on Celeron sku.)

Ethernet

LAN1

10/100/1000 Mbps Intel 82579LM GbE, support Wake On Lan

10/100/1000 Mbps Intel 82580LM GbE, support Wake On Lan

LAN2

10/100/1000 Mbps Intel I-210IT GbE, support Wake On Lan

10/100/1000 Mbps Intel I-211IT GbE, support Wake On Lan

Audio

Interface

Realtek ALC892, High Definition Audio, Line-out, Mic-in

Realtek ALC892, High Definition Audio, Line-out, Mic-in

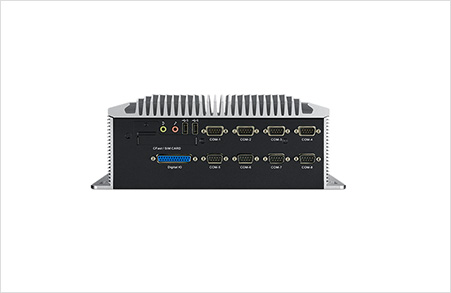

I/O Interface

Serial Port

4 x RS-232 ports, 4 x RS-232/422/485 port with auto flow control

4 x RS-232 ports, 4 x RS-232/422/485 port with auto flow control

USB

4 x USB 3.0 ports (USB1,2,3,4); 2 x USB 2.0 ports (USB5,6)

4 x USB 3.0 ports (USB1,2,3,4); 2 x USB 2.0 ports (USB5,6)

DIO

16 bit DIO

16 bit DIO

Other

Watchdog Timer

255 levels timer interval, setup by software

255 levels timer interval, setup by software

Expansion

Mini PCIe

2 x Full-size Mini PCIe with SIM holder (Supports mSATA)

2 x Full-size Mini PCIe with SIM holder (Supports mSATA)

PCI

-

2

PCI Express x 1

1

-

PCI Express x 4

1

-

Storage

HDD

Two 2.5" SATA HDD Bays with maximum device height 9.5mm, SATA III, Gen 3 Support (Max. Data Transfer Rate 600 MB/s), Support SATA RAID 0, 1

Two 2.5" SATA HDD Bays with maximum device height 9.5mm, SATA III, Gen 3 Support (Max. Data Transfer Rate 600 MB/s), Support SATA RAID 0, 1

Solid State Disk

1 x CFast Card slot

1 x CFast Card slot

Software Support

Microsoft Windows

Windows 8 , Windows 7, XP Professional (32bit), XP Embedded (32bit)

Windows 8 , Windows 7, XP Professional (32bit), XP Embedded (32bit)

Linux

Ubuntu 12.04

Ubuntu 12.04

Power

Power Type

AT/ATX

AT/ATX

Input Voltage

9 ~ 34 VDC

9 ~ 34 VDC

Power Adaptor

AC to DC, DC 12V , 120W (Optional)

AC to DC, DC 12V , 120W (Optional)

Consumption

Typical 19.2/16.4/14.8/16.4W, Max. 60/36.5/30/31.8W

Typical 19.2/16.4/14.8/16.4W, Max. 60/36.5/30/31.8W

Mechanical

Construction

Aluminum housing

Aluminum housing

Mounting

Desk/wall-mounting

Desk/wall-mounting

Dimensions

290 x 110 x 232mm (11.4" x 4.33" x 9.13")

290 x 110 x 232mm (11.4" x 4.33" x 9.13")

Weight

4.8 kg

4.8 kg

Environment

Operational Temperature

with extended temp peripherals: -10 ~ 60° C with 0.7m/s air flow, with HDD: 0 ~ 40° C with 0.7m/s air flow

with extended temp peripherals: -10 ~ 60° C with 0.7m/s air flow, with HDD: 0 ~ 40° C with 0.8m/s air flow

Storage Temperature

-40 ~ 85° C

-40 ~ 86° C

Relative Humidity

95% @ 40° C (non-condensing)

95% @ 41° C (non-condensing)

Vibration during Operation

With SSD: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.

With SSD: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 2 hr/axis.

Shock During Operation

With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration

With SSD/mSATA:30Grms, IEC 60068-2-27, half sine, 11ms duration

EMC

CE/FCC Class A, CCC, BSMI

CE/FCC Class A, CCC, BSMI

Safety Certifications

CB, UL, CCC, BSMI

CB, UL, CCC, BSMI
