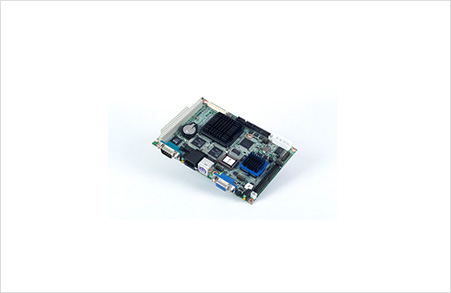

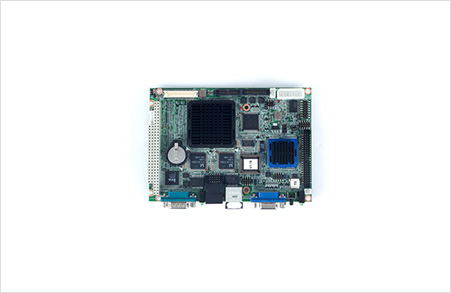

PCM-9375
AMD Geode™ 低功耗 LX800 500 MHz处理器
24-bit TFT LCD接口, 18-bit LVDS LCD显示
低功耗 : 7~8 W, 支持宽温： -40 ~ 85° C
双 10/100 Mbps快速以太网接口
支持4个 COM, 4个 USB , PC/104 扩展
支持SUSIAccess 和嵌入式软件 API
产品资料
规格

Part Number

PCM-9375E-J0A1E

PCM-9375EZ2-J0A1E

PCM-9375EZ-J0A1E

Processor

CPU

AMD Geode LX800

AMD Geode LX800

AMD Geode LX800

Core Number

1

1

1

Frequency

500MHz

500MHz

500MHz

L2 Cache

128 KB

128 KB

128 KB

Chipset

AMD CS5536

AMD CS5536

AMD CS5536

BIOS

Award 4 Mb Flash ROM BIOS

Award 4 Mb Flash ROM BIOS

Award 4 Mb Flash ROM BIOS

Memory

Technology

DDR 333 MHz

DDR 333 MHz

DDR 333 MHz

Recommended DRAM

AQD-SD3L4GN16-SQ

XELECTRO-12MC41DBJ

XELECTRO-12MC41DBJ

Max. Capacity

1GB

1GB

1GB

Socket

1 x 200-pin SODIMM

1 x 200-pin SODIMM

1 x 200-pin SODIMM

Display

Chipset

AMD Geode LX800

AMD Geode LX800

AMD Geode LX800

VRAM

Optimized Shared Memory Architecture up to 64 MB system memory

Optimized Shared Memory Architecture up to 64 MB system memory

Optimized Shared Memory Architecture up to 64 MB system memory

Graphic Engine

AMD Geode LX800 2D engine

AMD Geode LX800 2D engine

AMD Geode LX800 2D engine

LVDS

1 x Single channel 18-bit LVDS, up to 1600 x 1200 x 32 bpp at 60 Hz

1 x Single channel 18-bit LVDS, up to 1600 x 1200 x 32 bpp at 60 Hz

1 x Single channel 18-bit LVDS, up to 1600 x 1200 x 32 bpp at 60 Hz

VGA

Support up to 1920 x 1440 @ 32bpp (85Hz)

Support up to 1920 x 1440 @ 32bpp (85Hz)

Support up to 1920 x 1440 @ 32bpp (85Hz)

TTL

-

-

-

Dual Display

VGA+TTL, VGA+LVDS

VGA+TTL, VGA+LVDS

VGA+TTL, VGA+LVDS

Ethernet

Speed

10/100 Mbps (Supports Wake on LAN)

10/100 Mbps (Supports Wake on LAN)

10/100 Mbps (Supports Wake on LAN)

Controller

Ethernet1/2 Realtek RTL8139

Ethernet1/2 Realtek RTL8139

Ethernet1/2 Realtek RTL8139

Connector

RJ45 on Ethernet1, box header on Ethernet2

RJ45 on Ethernet1, box header on Ethernet2

RJ45 on Ethernet1, box header on Ethernet2

Audio

Chipset

Realtek ALC203 AC97, Line-in, Line-out, Mic-in

Realtek ALC203 AC97, Line-in, Line-out, Mic-in

Realtek ALC203 AC97, Line-in, Line-out, Mic-in

Watchdog Timer

Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

Storage

CompactFlash

CompactFlash Type I/II (Primary Master IDE Channel)

CompactFlash Type I/II (Primary Master IDE Channel)

CompactFlash Type I/II (Primary Master IDE Channel)

IDE

1

1

1

Floppy

1 (Shared with LPT)

1 (Shared with LPT)

1 (Shared with LPT)

Rear I/O

Serial

1 (COM1 supports RS-232) (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV)

1 (COM1 supports RS-232) (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV)

1 (COM1 supports RS-232) (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV)

Ethernet

1 (10/100/1000 Mbps)

1 (10/100/1000 Mbps)

1 (10/100/1000 Mbps)

PS/2 KB/Mouse

1

1

1

VGA

1

1

1

LED

Power, HDD

Power, HDD

Power, HDD

Power Button

1

1

1

Internal I/O

USB

4 x USB2.0

4 x USB2.0

4 x USB2.0

Serial

3 x COM ports (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV); COM3/COM4 supports RS-232; COM2 supports RS-232/422/485 (Supports RS-485 auto flow control)

3 x COM ports (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV); COM3/COM4 supports RS-232; COM2 supports RS-232/422/485 (Supports RS-485 auto flow control)

3 x COM ports (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV); COM3/COM4 supports RS-232; COM2 supports RS-232/422/485 (Supports RS-485 auto flow control)

Ethernet

1 (10/100 Mbps)

1 (10/100 Mbps)

1 (10/100 Mbps)

IDE

1 UDMA 33/66

1 UDMA 33/66

1 UDMA 33/66

Parallel (LPT)

1 (Shared with FDD)

1 (Shared with FDD)

1 (Shared with FDD)

FDD

1 (Shared with LPT)

1 (Shared with LPT)

1 (Shared with LPT)

GPIO

8-bit

8-bit

8-bit

I2C

optional

optional

optional

Expansion

PC/104

PC/104 Expansion(8/16-Bit ISA)

PC/104 Expansion(8/16-Bit ISA)

PC/104 Expansion(8/16-Bit ISA)

Power

Power Type

AT/ ATX

AT/ ATX

AT/ ATX

Power Supply Voltage

5V±5% (+12V option for LCD, PC/104)

5V±5% (+12V option for LCD, PC/104)

5V±5% (+12V option for LCD, PC/104)

Power Consumption (Typical)

0.6 A @ 5 V, 0.03 A @ 12 V (3.36 W)

0.6 A @ 5 V, 0.03 A @ 12 V (3.36 W)

0.6 A @ 5 V, 0.03 A @ 12 V (3.36 W)

Power Consumption (Max)

1.2 A @ 5 V, 0.23 A @ 12 V (8.76 W)

1.2 A @ 5 V, 0.23 A @ 12 V (8.76 W)

1.2 A @ 5 V, 0.23 A @ 12 V (8.76 W)

Power Management

APM 1.2, ACPI

APM 1.2, ACPI

APM 1.2, ACPI

Battery

Lithium 3 V / 196 mAH

Lithium 3 V / 196 mAH

Lithium 3 V / 196 mAH

Environment

Operational Temperature

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

-40 ~ 85° C (-40 ~ 185° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

-20 ~ 80° C (-4 ~ 176° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational Temperature

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

Physical

Dimension (mm)

146 x 102 mm (5.7" x 4")

146 x 102 mm (5.7" x 4")

146 x 102 mm (5.7" x 4")

Weight

0.64kg (1.41 lb), weight of total package

0.64kg (1.41 lb), weight of total package

0.64kg (1.41 lb), weight of total package

Total Height

25.2mm

25.2mm

25.2mm
