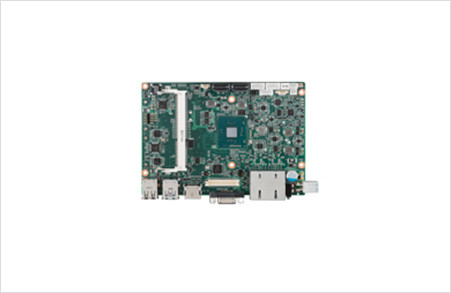

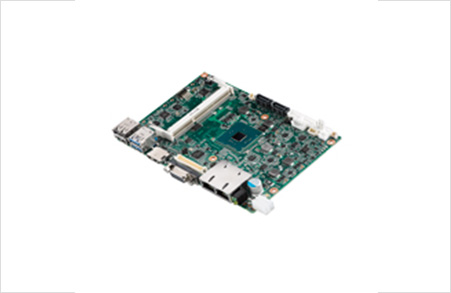

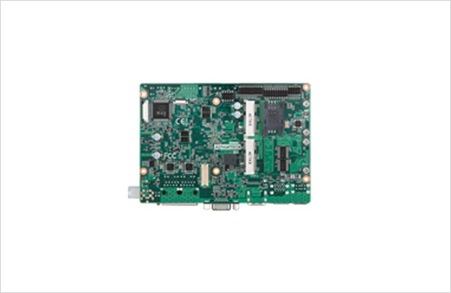

Part Number

PCM-9310AQ-S6A1E

PCM-9310CD-S6A1E

PCM-9310CQ-S6A1E

Processor

CPU

Intel Atom E8000

Intel Celeron® N3060

Intel Celeron® N3160

Base Frequency

1.04 GHz

1.6 GHz

1.6 GHz

Burst Frequency

2 GHz

2.48 GHz

2.24 GHz

Core Number

4

2

4

L2 Cache

2 MB

2 MB

2 MB

BIOS

AMI UEFI BIOS at 64 Mb

AMI UEFI BIOS at 64 Mb

AMI UEFI BIOS at 64 Mb

Memory

Technology

DDR3L 1600 MHz

DDR3L 1600 MHz

DDR3L 1600 MHz

Max. Capacity

8 GB

8 GB

8 GB

Socket

1 x 204-pin SODIMM

1 x 204-pin SODIMM

1 x 204-pin SODIMM

Display

Controller

Intel® HD Graphics 400

Intel® HD Graphics 400

Intel® HD Graphics 400

Graphic Features

DirectX11.1, OpenGL4.2, OpenCL1.2 (OpenCL not for Win7); HW Decode: H.265/HEVC @ level 5, H.264 @ Level 5.2, MPEG2, MVC, VC-1, WMV9, JPEG, VP8; HW Encode: H.264 @ Level 5.1, MVC, JPEG

DirectX11.1, OpenGL4.2, OpenCL1.2 (OpenCL not for Win7); HW Decode: H.265/HEVC @ level 5, H.264 @ Level 5.2, MPEG2, MVC, VC-1, WMV9, JPEG, VP8; HW Encode: H.264 @ Level 5.1, MVC, JPEG

DirectX11.1, OpenGL4.2, OpenCL1.2 (OpenCL not for Win7); HW Decode: H.265/HEVC @ level 5, H.264 @ Level 5.2, MPEG2, MVC, VC-1, WMV9, JPEG, VP8; HW Encode: H.264 @ Level 5.1, MVC, JPEG

VGA

1920 x 1200 at 60Hz

1920 x 1200 at 60Hz

1920 x 1200 at 60Hz

LVDS

Single/dual-ch 18/24bit up to 1920 x 1200 at 60Hz; 3.3/ 5/ 12V for VDD power, 5/12V for inverter

Single/dual-ch 18/24bit up to 1920 x 1200 at 60Hz; 3.3/ 5/ 12V for VDD power, 5/12V for inverter

Single/dual-ch 18/24bit up to 1920 x 1200 at 60Hz; 3.3/ 5/ 12V for VDD power, 5/12V for inverter

eDP*

eDP 1.3 up to 2560x1440 (Optional)

eDP 1.3 up to 2560x1440 (Optional)

eDP 1.3 up to 2560x1440 (Optional)

HDMI

HDMI 1.4b up to 2560x1600 at 60Hz

HDMI 1.4b up to 2560x1600 at 60Hz

HDMI 1.4b up to 2560x1600 at 60Hz

Multiple Display

VGA + HDMI + LVDS/eDP

VGA + HDMI + LVDS/eDP

VGA + HDMI + LVDS/eDP

Ethernet

Speed

10/ 100/ 1000 Mbps

10/ 100/ 1000 Mbps

10/ 100/ 1000 Mbps

Controller

RTL8111E

RTL8111E

RTL8111E

Connector

RJ45 x 2

RJ45 x 2

RJ45 x 2

Audio

CODEC

ALC892, High Definition Audio (HD), Line-in, Line out, Mic-in

ALC892, High Definition Audio (HD), Line-in, Line out, Mic-in

ALC892, High Definition Audio (HD), Line-in, Line out, Mic-in

Watchdog Timer

Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

Storage

SATA

1 x SATA III up to 600 MB/s; 1 x optional SATA II up to 300 MB/s

1 x SATA III up to 600 MB/s; 1 x optional SATA II up to 300 MB/s

1 x SATA III up to 600 MB/s; 1 x optional SATA II up to 300 MB/s

mSATA

1 x Full-size (support Mini PCIe by request)

1 x Full-size (support Mini PCIe by request)

1 x Full-size (support Mini PCIe by request)

Rear I/O

Ethernet

2 (10/100/1000Mbps)

2 (10/100/1000Mbps)

2 (10/100/1000Mbps)

VGA

1

1

1

HDMI

1

1

1

USB 2.0

2

2

2

USB 3.0

2

2

2

LED

Power, HDD

Power, HDD

Power, HDD

DC Jack*

1 (Optional)

1 (Optional)

1 (Optional)

Internal I/O

Serial

2 x RS-232, 2 x RS-232/422/485 with auto flow control (ESD protection: air gap ±15kV, contact ±8kV)

2 x RS-232, 2 x RS-232/422/485 with auto flow control (ESD protection: air gap ±15kV, contact ±8kV)

2 x RS-232, 2 x RS-232/422/485 with auto flow control (ESD protection: air gap ±15kV, contact ±8kV)

USB2.0

2

2

2

I2C

1 (Shared with SMBus pin)

1 (Shared with SMBus pin)

1 (Shared with SMBus pin)

SMBus

1 (Shared with I2C pin)

1 (Shared with I2C pin)

1 (Shared with I2C pin)

GPIO

8-bit (5V tolerance)

8-bit (5V tolerance)

8-bit (5V tolerance)

Expansion

Mini PCIe

1 x full-size with SIM holder; 1 x full-size (default support mSATA)

1 x full-size with SIM holder; 1 x full-size (default support mSATA)

1 x full-size with SIM holder; 1 x full-size (default support mSATA)

Power

Power Type

Single 12V DC power input

Single 12V DC power input

Single 12V DC power input

Power Supply Voltage

12V ± 10%

12V ± 10%

12V ± 10%

Power Consumption (Typical)

0.58A @ 12V (6.95W)

0.38 A @ 12 V (4.55 W)

0.58 A @ 12 V (7.05 W)

Power Consumption (Max)

0.85A @12 V (10.20 W)

0.85A @12 V (10.20 W)

1.03A @ 12 V (12.27 W)

Power Management

ACPI

ACPI

ACPI

Battery

Lithium 3 V / 210 mAH

Lithium 3 V / 210 mAH

Lithium 3 V / 210 mAH

Environment

Operational Temperature

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational Temperature

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

Physical

Dimension (mm)

146 x 102 mm (5.7" x 4")

146 x 102 mm (5.7" x 4")

146 x 102 mm (5.7" x 4")

Weight

0.6 kg (1.2 lb)

0.6 kg (1.2 lb)

0.6 kg (1.2 lb)

Total Height

TBC

TBC

TBC
