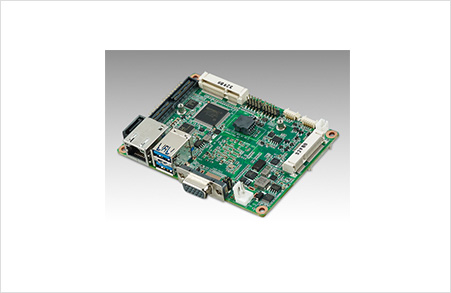

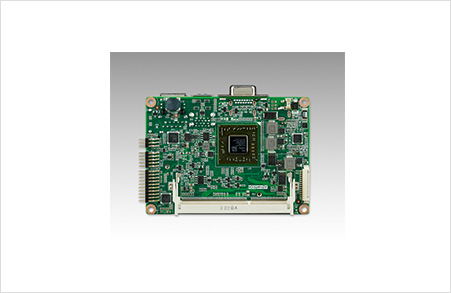

Part Number

MIO-2270DV-S0A1E

MIO-2270QH-S5A1E

MIO-2270QV-S5A1E

Processor

CPU

AMD G-Series SoC GX-210JA

AMD G-Series SoC GX-415GA

AMD G-Series SoC GX-415GA

Frequency

1.0 GHz

1.5 GHz

1.5 GHz

Core Number

2

4

4

L2 Cache

1 MB

2 MB

2 MB

Chipset

AMD® G series SoC processor integrated

AMD® G series SoC processor integrated

AMD® G series SoC processor integrated

BIOS

AMI EFI 32Mbit

AMI EFI 32Mbit

AMI EFI 32Mbit

Memory

Technology

DDR3/DDR3L 1066 MHz

DDR3/DDR3L 1066 MHz

DDR3/DDR3L 1066 MHz

Max. Capacity

8 GB

8 GB

8 GB

Socket

1 x 204-pin SODIMM (Support 1.5V DDR3 and 1.35V DDR3L)

1 x 204-pin SODIMM (Support 1.5V DDR3 and 1.35V DDR3L)

1 x 204-pin SODIMM (Support 1.5V DDR3 and 1.35V DDR3L)

Display

Chipset

AMD® G series SoC

AMD® G series SoC

AMD® G series SoC

Graphic Engine

DirectX®11.1 graphic with UVD4.2, Open GL4.1/ Open CL 1.2, 2D/ 3D Acceleration, Motion Video Acceleration, Hardware decode (UVD) for H.264, MPEG2/4, VC1, MVC, Graphic engine HD 8330E for GX-415GA, HD 8180 for GX-210JA

DirectX®11.1 graphic with UVD4.2, Open GL4.1/ Open CL 1.2, 2D/ 3D Acceleration, Motion Video Acceleration, Hardware decode (UVD) for H.264, MPEG2/4, VC1, MVC, Graphic engine HD 8330E for GX-415GA, HD 8180 for GX-210JA

DirectX®11.1 graphic with UVD4.2, Open GL4.1/ Open CL 1.2, 2D/ 3D Acceleration, Motion Video Acceleration, Hardware decode (UVD) for H.264, MPEG2/4, VC1, MVC, Graphic engine HD 8330E for GX-415GA, HD 8180 for GX-210JA

LVDS

Supports single channel 18-bit LVDS, Resolution: 1600 x 900 at 60 Hz/ 18bpp

Supports single channel 18-bit LVDS, Resolution: 1600 x 900 at 60 Hz/ 18bpp

Supports single channel 18-bit LVDS, Resolution: 1600 x 900 at 60 Hz/ 18bpp

VGA

Up to 2048 x 1536 at 60 Hz

Up to 2048 x 1536 at 60 Hz

Up to 2048 x 1536 at 60 Hz

HDMI

Supports 1920x1200 at 60 Hz/ 24bpp

Supports 1920x1200 at 60 Hz/ 24bpp

Supports 1920x1200 at 60 Hz/ 24bpp

Multiple Display

Yes (VGA+LVDS or HDMI+LVDS)

Yes (VGA+LVDS or HDMI+LVDS)

Yes (VGA+LVDS or HDMI+LVDS)

Ethernet

Speed

10/ 100/ 1000 Mbps

10/ 100/ 1000 Mbps

10/ 100/ 1000 Mbps

Controller

GbE Realtek RTL8111E 10/100/1000 Mbps

GbE Realtek RTL8111E 10/100/1000 Mbps

GbE Realtek RTL8111E 10/100/1000 Mbps

Connector

RJ45 on rear I/O

RJ45 on rear I/O

RJ45 on rear I/O

Audio

CODEC

Realtek ALC888S

Realtek ALC888S

Realtek ALC888S

Interface

High Definition Audio (HD)

High Definition Audio (HD)

High Definition Audio (HD)

Connector

Line-in, Line out

Line-in, Line out

Line-in, Line out

Watchdog Timer

Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

Storage

mSATA

1 x half size mini PCIe slot (Integrates USB signal, supports either mSATA or USB interface module)

1 x half size mini PCIe slot (Integrates USB signal, supports either mSATA or USB interface module)

1 x half size mini PCIe slot (Integrates USB signal, supports either mSATA or USB interface module)

SATA

1 x SATA III (Max. Data Transfer Tate 600MB/s) support 5V HDD only

1 x SATA III (Max. Data Transfer Tate 600MB/s) support 5V HDD only

1 x SATA III (Max. Data Transfer Tate 600MB/s) support 5V HDD only

Rear I/O

Ethernet

1 (10/100/1000 Mbps)

1 (10/100/1000 Mbps)

1 (10/100/1000 Mbps)

VGA

1

1

1

USB

2 x USB 3.0 compatible with USB 2.0

2 x USB 3.0 compatible with USB 2.0

2 x USB 3.0 compatible with USB 2.0

DC Power Jack

1 (supported by request)

1 (supported by request)

1 (supported by request)

Internal I/O

USB

2 x USB 2.0

2 x USB 2.0

2 x USB 2.0

Serial

1 x RS-232 from COM2 (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV); 1 x RS-232/422/485 from COM1 with auto-flow control

1 x RS-232 from COM2 (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV); 1 x RS-232/422/485 from COM1 with auto-flow control

1 x RS-232 from COM2 (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV); 1 x RS-232/422/485 from COM1 with auto-flow control

SMBus

1

1

1

GPIO

8-bit general purpose input/output

8-bit general purpose input/output

8-bit general purpose input/output

Expansion

Mini PCIe

1 x Half-size

1 x Half-size

1 x Half-size

MIOe

SMBus, 2 x USB2.0, LPC, 2 x PCIe x1, line out, DisplayPort/HDMI*, +5 Vsb/+12 Vsb power, Power On, Reset

SMBus, 2 x USB2.0, LPC, 2 x PCIe x1, line out, DisplayPort/HDMI*, +5 Vsb/+12 Vsb power, Power On, Reset

SMBus, 2 x USB2.0, LPC, 2 x PCIe x1, line out, DisplayPort/HDMI*, +5 Vsb/+12 Vsb power, Power On, Reset

Power

Power Type

Single 12V DC power input (Supports DC power hot plug)

Single 12V DC power input (Supports DC power hot plug)

Single 12V DC power input (Supports DC power hot plug)

Power Supply Voltage

Supports single 12V input, ± 10%

Supports single 12V input, ± 10%

Supports single 12V input, ± 10%

Total peripheral power supply output

5V @ 3A for CPU board and MIOe module totally, 12V @ 2A for MIOe module

5V @ 3A for CPU board and MIOe module totally, 12V @ 2A for MIOe module

5V @ 3A for CPU board and MIOe module totally, 12V @ 2A for MIOe module

Power Consumption (Typical)

w/ DDR3 0.494A @ 12V (5.93W), w/ DDR3L 0.491A @ 12V (5.89W)

w/ DDR3 1.05A @ 12V (12.6W), w/ DDR3L 1.02A @ 12V (12.24W)

w/ DDR3 1.05A @ 12V (12.6W), w/ DDR3L 1.02A @ 12V (12.24W)

Power Consumption (Max)

w/ DDR3 0.85A @ 12V (10.2W), w/ DDR3L 0.83A @ 12V (9.96W)

w/ DDR3 1.26A @ 12V (15.12W), w/ DDR3L 1.21A @ 12V (14.52W)

w/ DDR3 1.26A @ 12V (15.12W), w/ DDR3L 1.21A @ 12V (14.52W)

Power Management

ACPI

ACPI

ACPI

Battery

3V / 210 mAH

3V / 210 mAH

3V / 210 mAH

Environment

Operational Temperature

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational Temperature

-40° C ~ 85° C and 60° C @ 95% RH non-condensing

-40° C ~ 85° C and 60° C @ 95% RH non-condensing

-40° C ~ 85° C and 60° C @ 95% RH non-condensing

Physical

Dimension (mm)

100 x 72 mm (3.9" x 2.8")

100 x 72 mm (3.9" x 2.8")

100 x 72 mm (3.9" x 2.8")

Weight

0.45 kg (0.99 lb), weight of total package

0.45 kg (0.99 lb), weight of total package

0.45 kg (0.99 lb), weight of total package

Total Height

33.59mm

40.89mm

40.89mm
