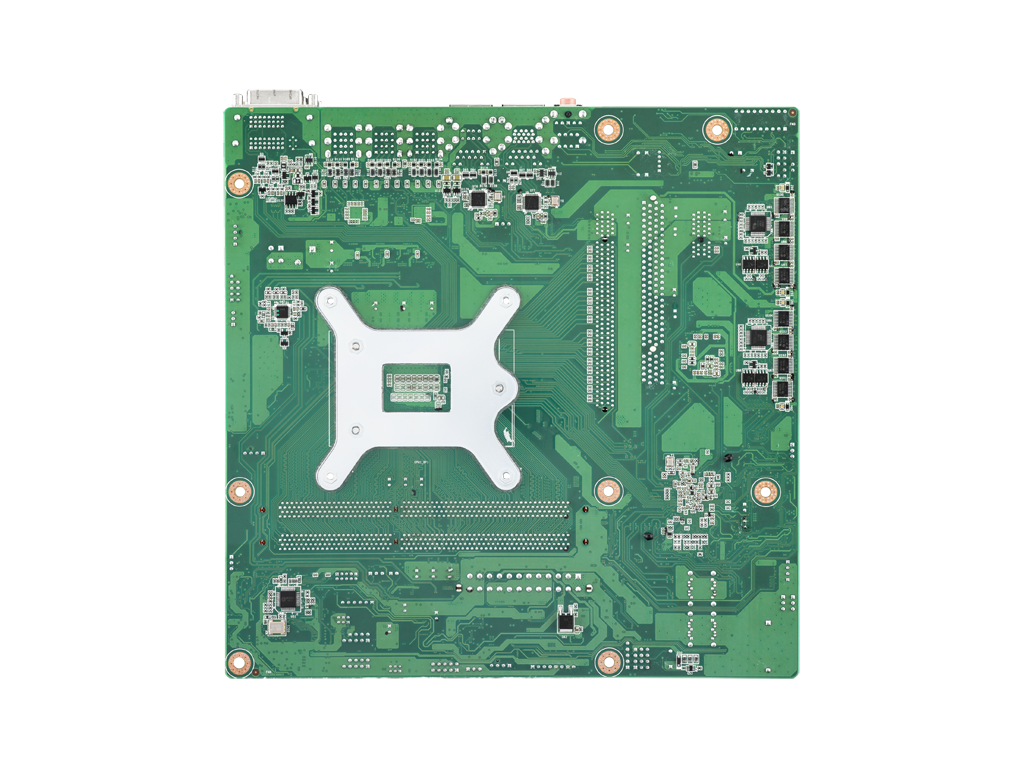

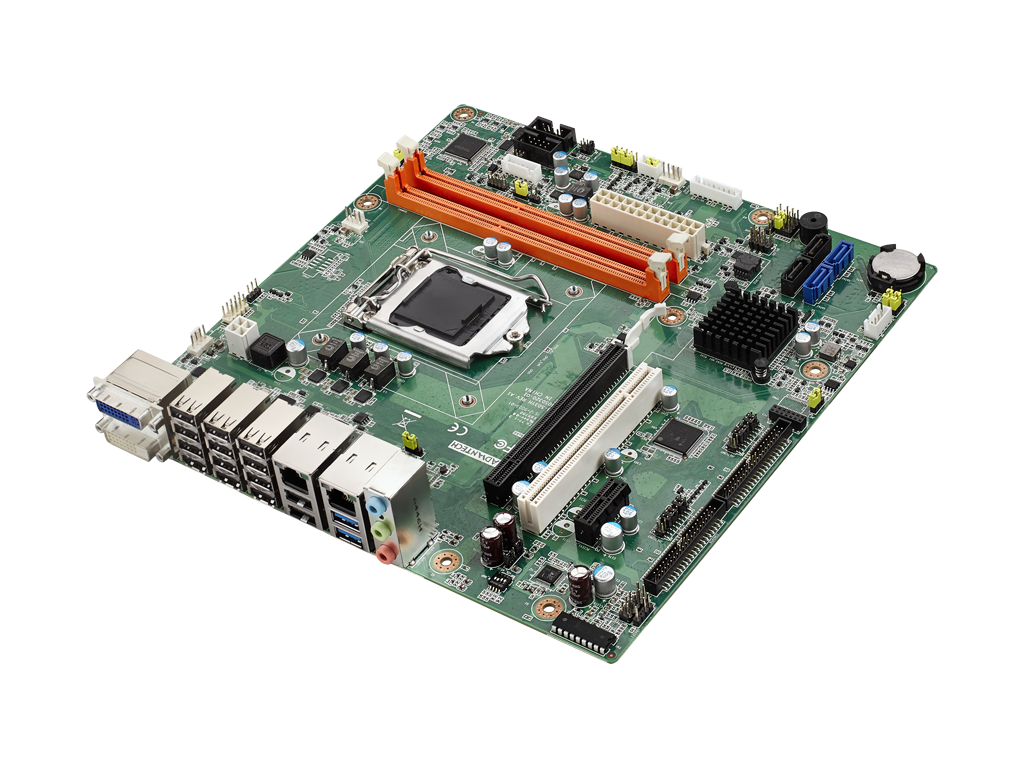

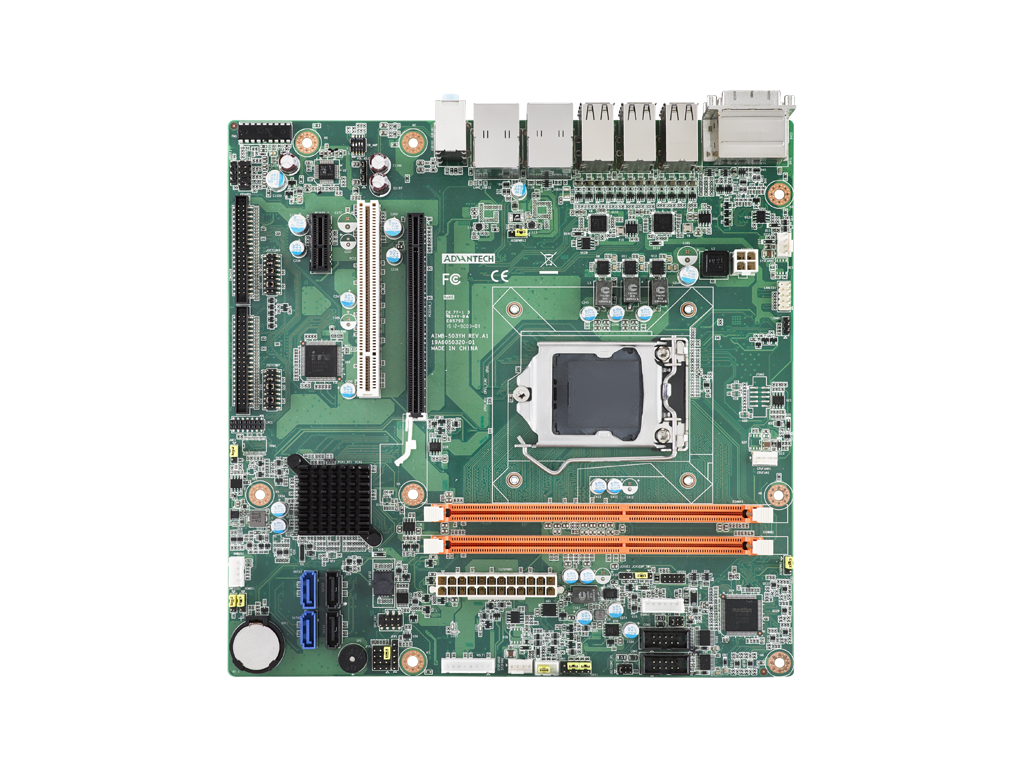

Part Number

AIMB-503G2-YHA1E

Form Factor

Form Factor

Micro ATX

Processor

CPU

4th Gen. Intel Core i7/i5/i3/Pentium/Celeron processor

CPU TDP

65W/54W/45W/35W

Frequency

2.3GHz~ 3.5GHz

Core Number

43500

L3 Cache

3 ~ 8MB

BIOS

AMI UEFI 128 Mbit

Chipset

Intel H81

Memory

Technology

DDR3 1333/1600 MHz

Max. Capacity

16GB

ECC Support

No

Socket

2 x 204 pin SODIMM

Display

Controller

Intel HD Graphics

Graphic Engine

DirectX 11, OpenCL1.1 and OpenGL 3.1 support

Graphic Memory

1GB maximum shared memory with 2GB and above system memory installed

DDI (HDMI/DVI/DisplayPort)

DVI-I /DVI-D

Multiple Display

Dual

Expansion

PCI Express x 16

1

PCI Express x 4

0

PCI Express x 1

1

PCI

1

SMBus

0

Ethernet

Controller

GbE LAN1: Realtek RTL8111E, GbE LAN2: Realtek RTL8111E

Speed

10/ 100/ 1000 Mbps

Connector

RJ45 x 2

Audio

Audio Interface

HD Audio

CODEC

Realtek ALC892, High Definition Audio (HD)

Connector

3 (Line-in, Line out, Mic-in)

Watchdog Timer

WatchDog Timer

Yes

Storage

SATA

2 SATA 3.0 & 1 SATA 2.0

RAID

Software RAID 0, 1, 5, 10

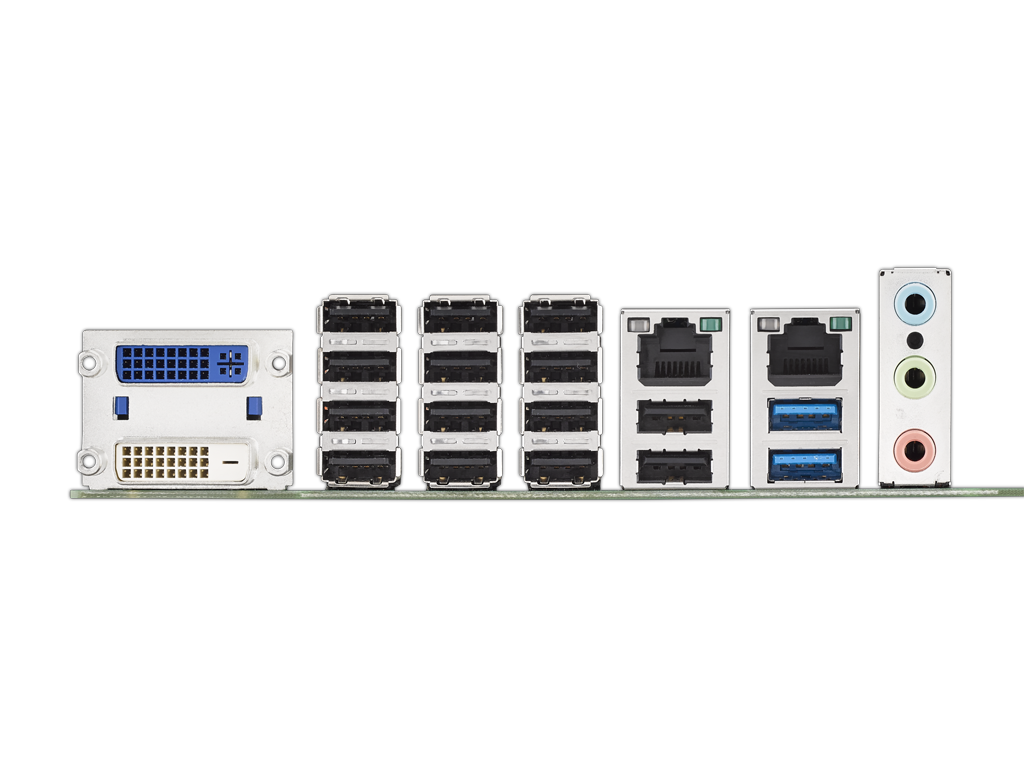

I/O

USB3.0

2

USB2.0

14

GPIO

8-bit GPIO

LPT

0

COM Port

10 ( 8 x RS232, 2 x RS232/ 422/ 485)

Keypad

0

TPM

Optional

Smart Fan

5

Power

Power Type

ATX

Connector

ATX24P

Power Consumption (Idle)

1A @ 5V / 0.94A @ 3.3V / 0.44A @ 12V / 0.23A @ 5Vsb / 0A @ -12V/1.91A @ 5V / 0.27A @ 3.3V / 0.64A @ 12V / 0.16A @ 5Vsb / 0.14A @ -12V

Power Consumption (Full Load)

3.66A @ 5V / 1.05A @ 3.3V / 6.02A @12V / 0.29A @ 5Vsb / 0A @ -12V /2.88A @ 5V / 1.06A @ 3.3V / 3.3A @12V / 0.36A @ 5Vsb / 0.01A @ -12V

Battery

Lithium 3 V / 200 mAh

Environment

Operational Temperature

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational Temperature

-40~ 85° C

Vibration Resistance

3.5 Grm (Non-Operation Mode)

Physical

Dimension (mm)

244 x 244 mm

Weight

1.2 kg (2.64 lb), weight of total package

Operating System

Microsoft Windows

Yes

Linux

Yes

SUSIAccess

Yes

Certification

EMC

CE, FCC Class B
