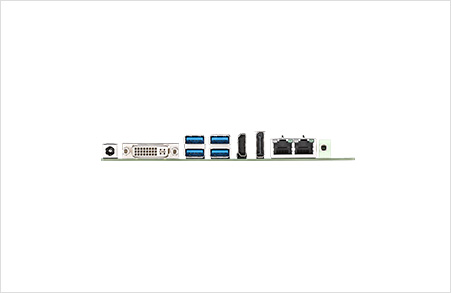

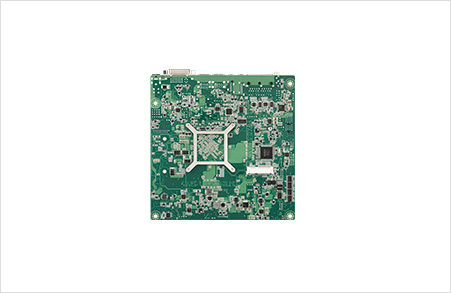

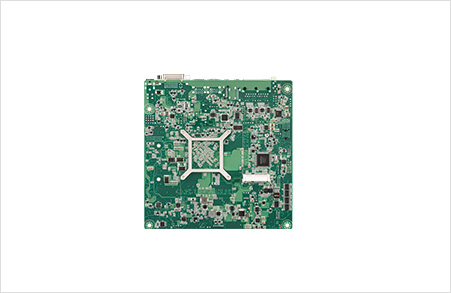

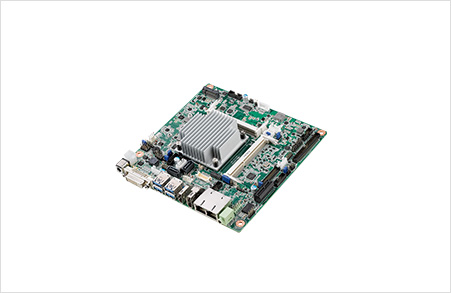

Part Number

AIMB-216D-S6A1E

AIMB-216L-S6A1E

AIMB-216N-S6A1E

AIMB-216U-S6A1E

Storage

M.2

M.2 B key (type 2242 & 2280)

0

M.2 B key (type 2242 & 2280)

M.2 B key (type 2242 & 2280)

SATA

2 x SATAIII (max data transfer rate 6.0 Gb/s), SATA2 colay M.2

1 x SATAIII (max data transfer rate 6.0 Gb/s)

2 x SATAIII (max data transfer rate 6.0 Gb/s), SATA2 colay M.2

2 x SATAIII (max data transfer rate 6.0 Gb/s), SATA2 colay M.2

Form Factor

Form Factor

mini ITX

mini ITX

mini ITX

mini ITX

Processor

CPU

Intel® Pentium® N3710

Intel® Celeron® Processor N3160

Intel® Celeron® Processor N3160

Intel® Celeron® N3010

CPU TDP

6W

6W

6W

4 W

Core Number

4

4

4

2

Frequency

1.6 GHz

1.6 GHz

1.6 GHz

1.04 GHz

BIOS

AMI 64 Mbit, SPI

AMI 64 Mbit, SPI

AMI 64 Mbit, SPI

AMI 64 Mbit, SPI

L2 Cache

2 MB

2 MB

2 MB

2 MB

Memory

Technology

DDR3L 1600 MHz

DDR3L 1600 MHz

DDR3L 1600 MHz

DDR3L 1600 MHz

Max. Capacity

8 GB

8 GB

8 GB

8 GB

Socket

2 x 204 pin SODIMM

2 x 204 pin SODIMM

2 x 204 pin SODIMM

2 x 204 pin SODIMM

Display

Controller

Intel Gen8 LP

Intel Gen8 LP

Intel Gen8 LP

Intel Gen8 LP

DDI (HDMI/DVI/DisplayPort)

DVI-D/HDMI/DP: up to 3840 x 2160 @ 30Hz

DVI-D: up to 3840 x 2160 @ 30Hz

DVI-D/HDMI/DP: up to 3840 x 2160 @ 30Hz

DVI-D/HDMI/DP: up to 3840 x 2160 @ 30Hz

LVDS

Dual channel 24-bit LVDS, max resolution up to 1920 x 1200 with 60Hz

Dual channel 24-bit LVDS, max resolution up to 1920 x 1200 with 60Hz

Dual channel 24-bit LVDS, max resolution up to 1920 x 1200 with 60Hz

Dual channel 24-bit LVDS, max resolution up to 1920 x 1200 with 60Hz

Video Interface

DVI-D+DP+LVDS, DVI-D+DP+HDMI, DVI-D+eDP+LVDS, DVI-D+eDP+HDMI (eDP is BOM optional)

DVI-D + LVDS

DVI-D+DP+LVDS, DVI-D+DP+HDMI, DVI-D+eDP+LVDS, DVI-D+eDP+HDMI (eDP is BOM optional)

DVI-D+DP+LVDS, DVI-D+DP+HDMI, DVI-D+eDP+LVDS, DVI-D+eDP+HDMI (eDP is BOM optional)

Multiple Display

Triple

Dual

Triple

Triple

LCD (TTL/LVDS/eDP)

eDP supports up to 2560 x 1440 @ 60Hz (eDP colay with DP, and eDP is optional)

0

eDP supports up to 2560 x 1440 @ 60Hz (eDP colay with DP, and eDP is optional)

eDP supports up to 2560 x 1440 @ 60Hz (eDP colay with DP, and eDP is optional)

Expansion

Slot Type

1 x full-size MiniPCIe, 1 x M.2 (B key, 2242 & 2280mm)

1 x full-size MiniPCIe

1 x full-size MiniPCIe, 1 x M.2 (B key, 2242 & 2280mm)

1 x full-size MiniPCIe, 1 x M.2 (B key, 2242 & 2280mm)

PCI Express x 1

1

1

1

1

Ethernet

Controller

RTL8111G

RTL8111G

RTL8111G

RTL8111G

Speed

10/ 100/ 1000 Mbps

10/ 100/ 1000 Mbps

10/ 100/ 1000 Mbps

10/ 100/ 1000 Mbps

Connector

RJ45 x 2

RJ45 x 1

RJ45 x 2

RJ45 x 2

Audio

Audio Interface

HD Audio

HD Audio

HD Audio

HD Audio

CODEC

Realtek ALC892, High Definition Audio (HD)

Realtek ALC892, High Definition Audio (HD)

Realtek ALC892, High Definition Audio (HD)

Realtek ALC892, High Definition Audio (HD)

Connector

1 (Line Out)

1 (Line Out)

1 (Line Out)

1 (Line Out)

Watchdog Timer

WatchDog Timer

Yes

Yes

Yes

Yes

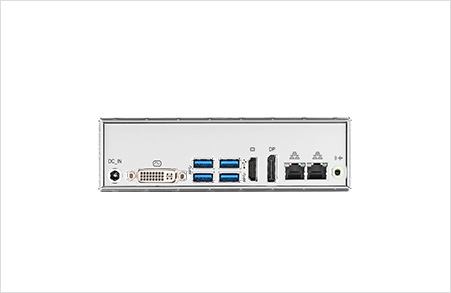

I/O

USB2.0

4 USB3.0 & 2 USB2.0

4 USB3.0

4 USB3.0 & 2 USB2.0

4 USB3.0 & 2 USB2.0

GPIO

1, 8-bit GPIO

1, 8-bit GPIO

1, 8-bit GPIO

1, 8-bit GPIO

COM Port

6(5 x RS-232, 1 x RS-232/422/485)

2 x RS232

6(5 x RS-232, 1 x RS-232/422/485)

6(5 x RS-232, 1 x RS-232/422/485)

TPM

Optional

Optional

Optional

Optional

Power

Power Type

ATX, AT

ATX, AT

ATX, AT

ATX, AT

Connector

DC jack, internal 4pin

DC jack, internal 4pin

DC jack, internal 4pin

DC jack, internal 4pin

Power Adaptor

Yes

Yes

Yes

Yes

Environment

Operational Temperature

0 ~ 60° C (32 ~ 140° F)

0 ~ 60° C (32 ~ 140° F)

0 ~ 60° C (32 ~ 140° F)

0 ~ 60° C (32 ~ 140° F)

Non-Operational Temperature

-40~ 85° C

-40~ 85° C

-40~ 85° C

-40~ 85° C

Vibration Resistance

3.5 Grms (non OP)

3.5 Grms (non OP)

3.5 Grms (non OP)

3.5 Grms (non OP)

Physical

Dimension (mm)

170x 170 mm (without heatsink)

170x 170 mm (without heatsink)

170x 170 mm (without heatsink)

170x 170 mm (without heatsink)

Weight

1.04 kg (1.72 lb), weight of total package

1.04 kg (1.72 lb), weight of total package

1.04 kg (1.72 lb), weight of total package

1.04 kg (1.72 lb), weight of total package

Construction

with fanless design

with fanless design

with fanless design

with fanless design

Operating System

Microsoft Windows

Yes

Yes

Yes

Yes

Linux

Yes

Yes

Yes

Yes

SUSIAccess

Yes

Yes

Yes

Yes

Certification

EMC

CE, FCC

CE, FCC

CE, FCC

CE, FCC
