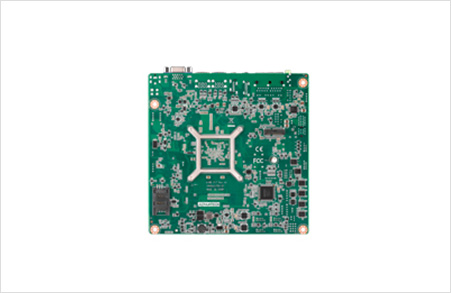

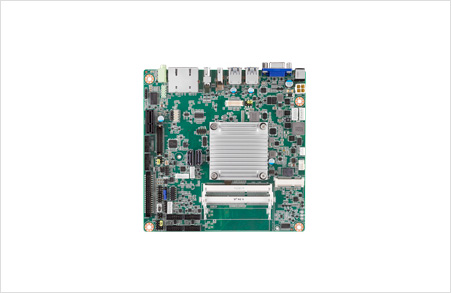

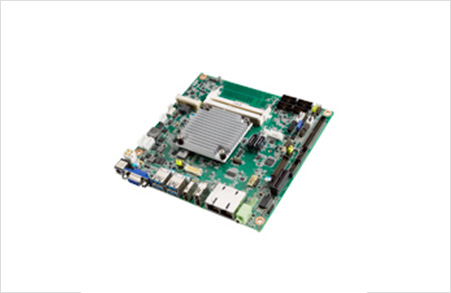

Part Number

AIMB-217D-S6A1E

AIMB-217N-S6A1E

AIMB-217Z-S6A1E

Form Factor

Form Factor

Mini-ITX

Mini-ITX

Mini-ITX

Processor

CPU

Intel® Pentium® N4200 1.1/2.5GHz (Turbo), 6W (4C/1866)

Intel® Celeron® N3350 Dual Core SoC

Intel Atom® x7-E3950 Processor

CPU TDP

6W

6W

12 W

Core Number

4

2

4

Frequency

1.1 GHz

1.1 GHz

1.6 GHz

BIOS

AMI 128 Mbit SPI

AMI 128 Mbit SPI

AMI 128 Mbit SPI

L2 Cache

2 MB

2 MB

2 MB

Memory

Technology

DDR3L 1866 MHz

DDR3L 1866 MHz

DDR3L 1866 MHz

Max. Capacity

8 GB

8 GB

8 GB

Socket

2 x 204 pin SODIMM

2 x 204 pin SODIMM

2 x 204 pin SODIMM

Display

Controller

Intel® HD Graphics 505

Intel® HD Graphics 500

Intel® HD Graphics 505

DDI (HDMI/DVI/DisplayPort)

HDMI/DP/VGA

HDMI/DP/VGA

HDMI/DP/VGA

LVDS

Dual channel 24-bit LVDS, max resolution up to 1920 x 1200 with 60Hz

Dual channel 24-bit LVDS, max resolution up to 1920 x 1200 with 60Hz

Dual channel 24-bit LVDS, max resolution up to 1920 x 1200 with 60Hz

Video Interface

VGA (or EDP) + DP (or LVDS) + HDMI

VGA (or EDP) + DP (or LVDS) + HDMI

VGA (or EDP) + DP (or LVDS) + HDMI

Multiple Display

Triple

Triple

Triple

eDP*

eDP supports up to 4096 x 2160 @ 60 Hz (eDP is BOM optional)

eDP supports up to 4096 x 2160 @ 60 Hz (eDP is BOM optional)

eDP supports up to 4096 x 2160 @ 60 Hz (eDP is BOM optional)

Expansion

Slot Type

1 full-size MiniPCIe + M.2 E key (Type: 2230)

1 full-size MiniPCIe + M.2 E key (Type: 2230)

1 full-size MiniPCIe + M.2 E key (Type: 2230)

PCI Express x 1

1 (colay M.2 E key)

1 (colay M.2 E key)

1 (colay M.2 E key)

Ethernet

Controller

LAN1/ LAN2: Realtek RTL8111G

LAN1/ LAN2: Realtek RTL8111G

LAN1/ LAN2: Realtek RTL8111G

Speed

10/ 100/ 1000 Mbps

10/ 100/ 1001 Mbps

10/ 100/ 1002 Mbps

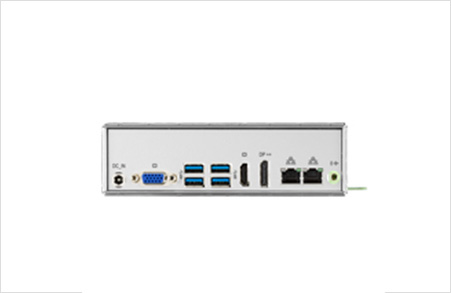

Connector

RJ45 x 2

RJ45 x 3

RJ45 x 4

Audio

Audio Interface

HD Audio

HD Audio

HD Audio

Connector

1 (Line Out)

1 (Line Out)

1 (Line Out)

CODEC

Realtek ALC888S, High Definition Audio (HD)

Realtek ALC888S, High Definition Audio (HD)

Realtek ALC888S, High Definition Audio (HD)

Watchdog Timer

WatchDog Timer

Yes

Yes

Yes

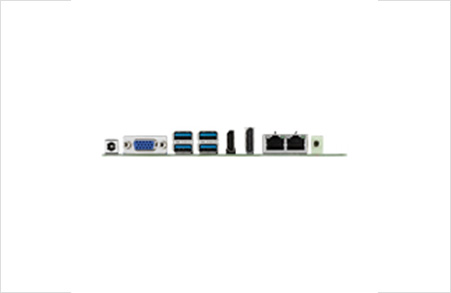

I/O

USB3.0/2.0

4 USB 3.0 & 8 USB 2.0 (USB9/10/11/12 is BOM optional)

4 USB 3.0 & 8 USB 2.0 (USB9/10/11/12 is BOM optional)

4 USB 3.0 & 8 USB 2.0 (USB9/10/11/12 is BOM optional)

GPIO

1, 8-bit GPIO

1, 8-bit GPIO

1, 8-bit GPIO

COM Port

6 ( 5 x RS232, 1 x RS232/ 422/ 485)

6 ( 5 x RS232, 1 x RS232/ 422/ 485)

6 ( 5 x RS232, 1 x RS232/ 422/ 485)

TPM

Optional

Optional

Optional

Storage

SATA

2 x SATAIII (max data transfer rate 6.0 Gb/s), SATA2 colay Msata

2 x SATAIII (max data transfer rate 6.0 Gb/s), SATA2 colay Msata

2 x SATAIII (max data transfer rate 6.0 Gb/s), SATA2 colay Msata

Power

Power Type

ATX, AT

ATX, AT

ATX, AT

Connector

DC jack, internal 4pin

DC jack, internal 4pin

DC jack, internal 4pin

Power Adaptor

Yes

Yes

Yes

Environment

Non-Operational Temperature

-40~ 85° C

-40~ 85° C

Operational Temperature

0 ~ 60° C (32 ~ 140° F)

0 ~ 60° C (32 ~ 140° F)

With extended temperature peripherals: -20 ~ 70° C with 0.7m/s air flow

Vibration Resistance

3.5 Grms (non OP)

3.5 Grms (non OP)

3.5 Grms (non OP)

Physical

Weight

1.04 kg (1.72 lb), weight of total package

1.04 kg (1.72 lb), weight of total package

1.04 kg (1.72 lb), weight of total package

Dimension (mm)

170 x 170 mm

170 x 170 mm

170 x 170 mm

Construction

with fanless design

with fanless design

with fanless design

Operating System

Microsoft Windows

Yes

Yes

Yes

Linux

Yocto Linux

Yocto Linux

Yocto Linux

Certification

EMC

CE/FCC Class B

CE/FCC Class B

CE/FCC Class B
