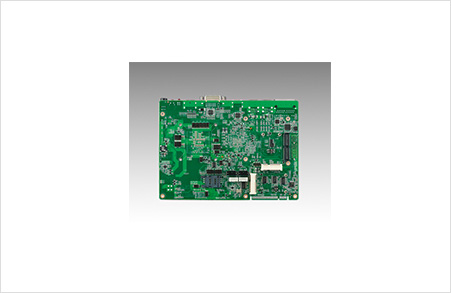

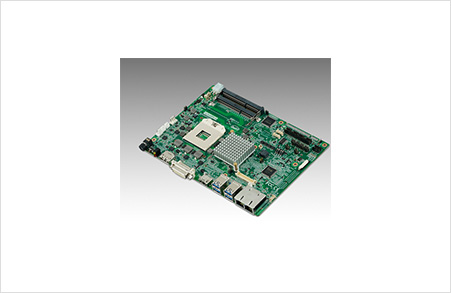

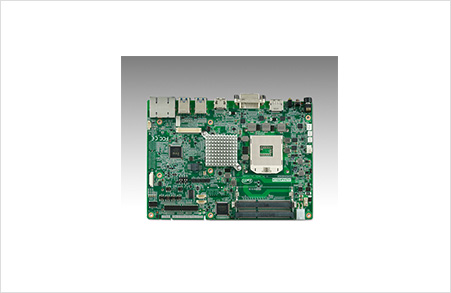

Part Number

MIO-9290F-00A1E

Form Factor

Form Factor

5.25

Processor

CPU

Socket rPGA988

CPU TDP

35~45W

Frequency

2.1~2.7 GHz

Core Number

2~4

L2 Cache

3~6 MB

BIOS

AMI EFI 64Mbit

Chipset

Intel QM77

Memory

Technology

DDR3 1600 MHz DDR3L 1333 MHz

Max. Capacity

16 GB

Socket

2 x 204-pin SODIMM

Display

Controller

Intel Ivy Bridge Processor + Intel QM77 Integrated GFX Gen 7

Graphic Engine

DirectX 9 and OpenGL3.0 support Hardware decode H/W acceleration: MPEG2 H/W Decode/Acceleration: H.264/ VC1/ WMV9

Graphic Memory

Share with system memory up to 512 MB

LCD (TTL/LVDS/eDP)

LVDS 48-bit, up to 1920 x 1200 at 60 Hz

DDI (HDMI/DVI/DisplayPort)

DisplayPort: up to 1920 x 1200 @ 60Hz HDMI:up to 2560 x 1600 @ 60Hz DVI-I:up to 2560 x 1600 @ 60Hz

Multiple Display

Trip: DP + HDMI + DVI-I

Expansion

Slot Type

2 (Supports mSATA)

MIOe

SMBus, 3 x USB2.0, LPC, 1 x PCIe, line out, Displayport or HDMI(optional), Reset#, PowerOn, +5Vsb, +12Vsb

Ethernet

Controller

GbE1: Intel 82579LM GbE2: Intel I-210IT

Speed

10/100/1000Mbps

Connector

RJ45 x 2

Audio

Audio Interface

HD Audio

CODEC

Realtek ALC892, High Definition Audio (HD)

Connector

Line-in, Line out, Mic-in

Watchdog Timer

WatchDog Timer

Yes

Storage

SATA

2 SATA port (Max. Data Transfer Rate 600 MB/s)

mSATA

2 (Supports either mSATA or USB interface module or full size miniPCIe)

I/O

USB3.0

4

USB2.0

2

GPIO

16-bit

COM Port

4~6 (2 x RS232, 2 x RS232/422/485, 2 optional RS-232 with Tx/Rx only)

Reset Button

1

Power Button

1

Smart Fan

1

SMBus

1

I2C Bus

1 (Shares with SMBus pin)

Power

Power Type

Single 12V DC power input

Power Supply Voltage

Supports single 12V input, ± 10%

Power Consumption (Idle)

i7-3610QE/ DDR3L: 0.661 A @ 12 V (7.932 W) i7-3610QE/ DDR3: 0.693A @ 12 V (8.316 W)

Power Consumption (Full Load)

i7-3610QE/ DDR3L: 2.616A @ 12 V (31.392 W) i7-3610QE/ DDR3: 2.685A @ 12 V (32.22 W)

Battery

Lithium 3 V / 210 mAH

Environment

Operational Temperature

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational Temperature

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

Physical

Dimension (mm)

203 x 146 mm

Weight

0.9 kg, weight of total package

Construction

Copper with fan design

Operating System

Microsoft Windows

Yes

Linux

Yes

SUSIAccess

Yes

iManager

Yes

Certification

EMC

CE, FCC
